R1=1ohm
R2=1.36ohm
R3=1.5ohm
C1=1.5mF
L1=7mH
L2=10mH
Frequency=50Hz

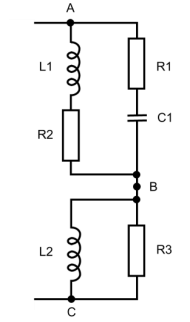

find the impedance for each component in the circuit(R1,R2,R3,C1,L1,L2)
Find the impedance for Zab, Zbc, Zac.
