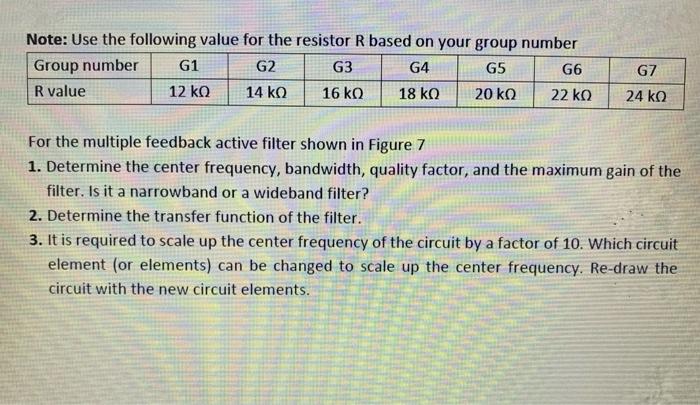

Note: Use the following value for the resistor R based on your group number Group number G2 G3 G4 G5 R value 14 KQ 16 ΚΩ 18 KQ 20 ΚΩ G1 12 ΚΩ G6 22 KQ G7 24 KQ For the multiple feedback active filter shown in Figure 7 1. Determine the center frequency, bandwidth, quality factor, and the maximum gain of the filter. Is it a narrowband or a wideband filter? 2. Determine the transfer function of the filter. 3. It is required to scale up the center frequency of the circuit by a factor of 10. Which circuit element (or elements) can be changed to scale up the center frequency. Re-draw the circuit with the new circuit elements.

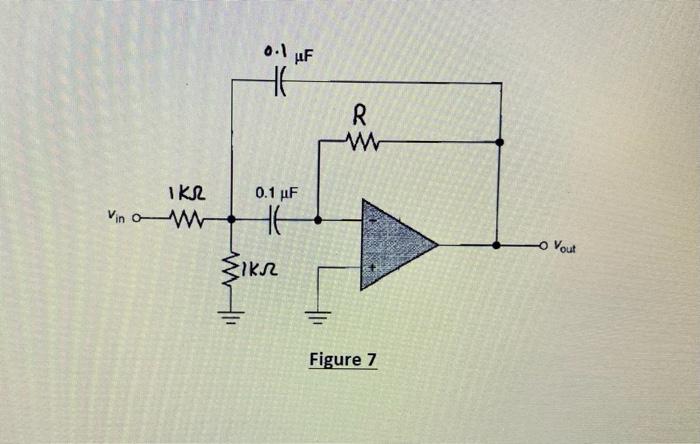

Vin 1KR 0.1 11 SIKS μF 0.1 μF HE R www Figure 7 - Vout
