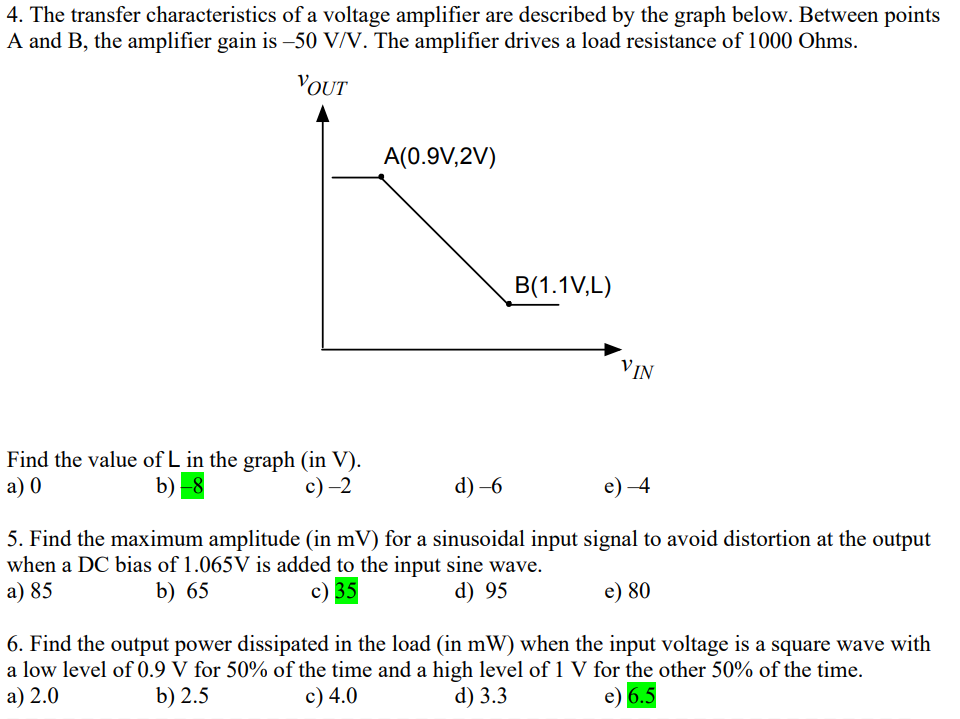

4. The transfer characteristics of a voltage amplifier are described by the graph below. Between points A and B, the amp
