10.5. In the three-phase system shown in Figure 80, phase a is on no load and phases b and c are short-circuited to grou

Post by answerhappygod »

10 5 In The Three Phase System Shown In Figure 80 Phase A Is On No Load And Phases B And C Are Short Circuited To Grou 1
10 5 In The Three Phase System Shown In Figure 80 Phase A Is On No Load And Phases B And C Are Short Circuited To Grou 1 (22.19 KiB) Viewed 21 times

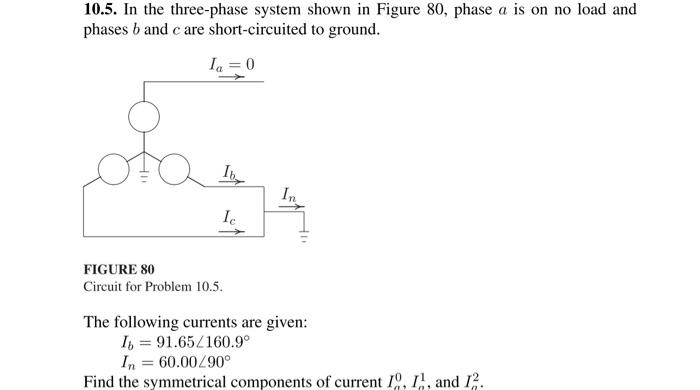

10.5. In the three-phase system shown in Figure 80, phase a is on no load and phases b and c are short-circuited to ground. Ia = 0 Ib Ie FIGURE 80 Circuit for Problem 10.5. In The following currents are given: 91.65/160.9° Ib In = 60.00/90° Find the symmetrical components of current 10, 11, and 1².
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
