Given a three-input OR gate with inputs A, B, and C, draw timing diagrams of the input waveforms and output waveform at

[answerhappygod]

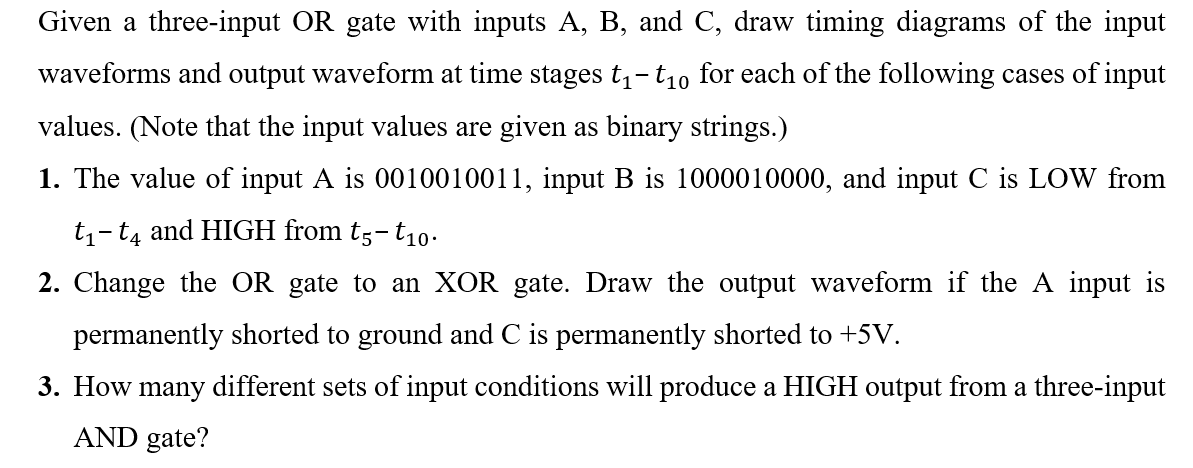

Given A Three Input Or Gate With Inputs A B And C Draw Timing Diagrams Of The Input Waveforms And Output Waveform At 1 (53.3 KiB) Viewed 20 times

Given a three-input OR gate with inputs A, B, and C, draw timing diagrams of the input waveforms and output waveform at time stages t₁- t10 for each of the following cases of input values. (Note that the input values are given as binary strings.) 1. The value of input A is 0010010011, input B is 1000010000, and input C is LOW from t₁- t4 and HIGH from t5-t10. 2. Change the OR gate to an XOR gate. Draw the output waveform if the A input is permanently shorted to ground and C is permanently shorted to +5V. 3. How many different sets of input conditions will produce a HIGH output from a three-input AND gate?
