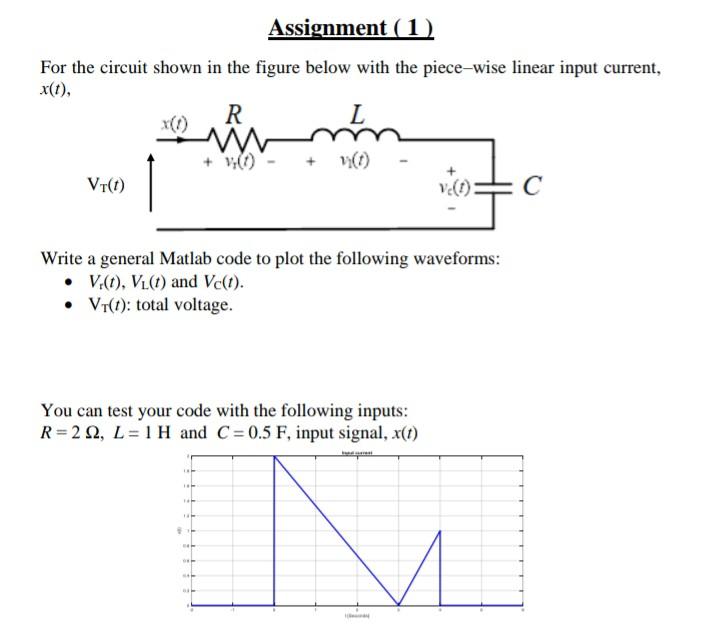

Assignment (1) For the circuit shown in the figure below with the piece-wise linear input current, x(t), R L VT(1) x(1)

[answerhappygod]

Assignment 1 For The Circuit Shown In The Figure Below With The Piece Wise Linear Input Current X T R L Vt 1 X 1 1 (36.11 KiB) Viewed 17 times

please solve it by matlab only.iam beginner ,so solve it correctly all with easiest way .
Assignment (1) For the circuit shown in the figure below with the piece-wise linear input current, x(t), R L VT(1) x(1) Write a general Matlab code to plot the following waveforms: V.(t), V₁(t) and Vc(t). • Vr(t): total voltage. You can test your code with the following inputs: R=222, L= 1 H and C= 0.5 F, input signal, x(t) HOM HP Ta 81 HAP vc(1) B
