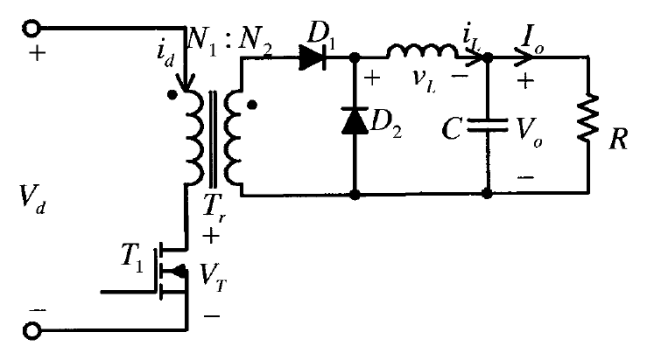

A forward converter shown in figure below is used to power theload. The input dc voltage Vd is 150V. The output voltage Vo isregulated at 15V. The converter operating mode is continuouscurrent mode when the minimum load is 15W. The switching frequencyis 100KHz. Assuming all ideal components.
a) Determine the minimum inductance of the inductor if the turnsratio N1 : N2 = 4.
b) Sketch to scale the following waveforms in two cycles,indicating significant values at 50W load.
i) Current waveform of input current id
ii) Current waveform of diode D2
c) Determine the capacitance if the voltage ripple is 200mV.Assume the inductance is the minimum inductance determined in parta
