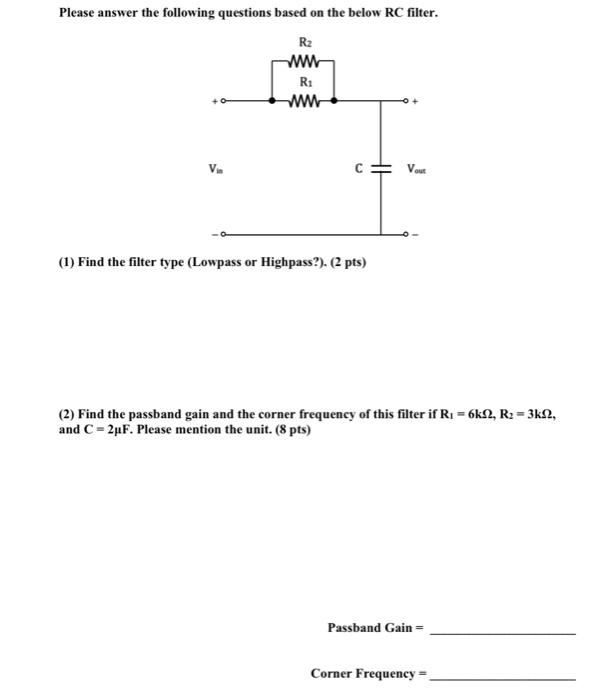

Please answer the following questions based on the below RC filter. R₂ ww V₁ R₁ ww (1) Find the filter type (Lowpass or Highpass?). (2 pts) Vout (2) Find the passband gain and the corner frequency of this filter if R₁ = 6k£2, R₂ = 3km2, and C=2µF. Please mention the unit. (8 pts) Passband Gain = Corner Frequency-
(3) Using the transfer function of the above filter if R₁ = 6k2, R₂ = 3k, and C = 2µF, and find the output voltage, Vout, for the following input voltage, Vin. Please mention the unit. (20 pts) Vin = 1.2 cos (100t+20°) +2.4 cos (500t + 60°) V
