Figure 5-23 R₁ 33 Ω H Hilt VA 66 V R₁ = 330 Ω E R₁ = 2200 5-21 In Fig. 5-23, how much is the current in the wire between

[answerhappygod]

1 (19.6 KiB) Viewed 17 times

2 (19.78 KiB) Viewed 17 times

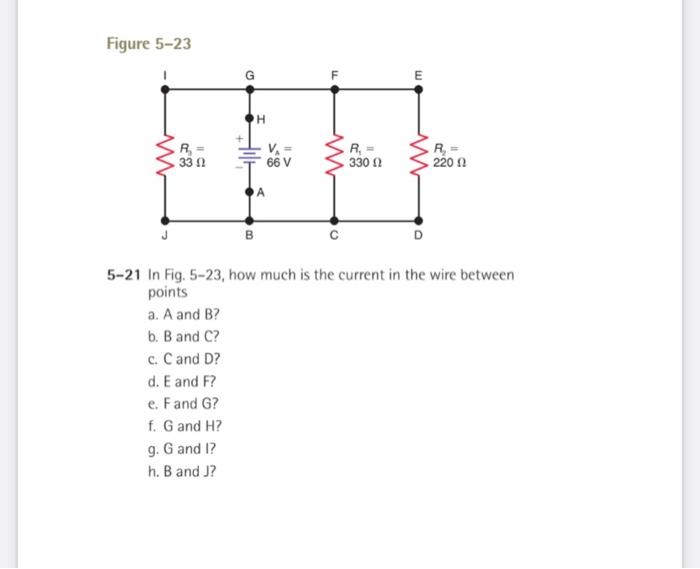

Figure 5-23 R₁ 33 Ω H Hilt VA 66 V R₁ = 330 Ω E R₁ = 2200 5-21 In Fig. 5-23, how much is the current in the wire between points a. A and B? b. B and C? c. C and D? d. E and F? e. F and G? f. G and H? g. G and I? h. B and J?

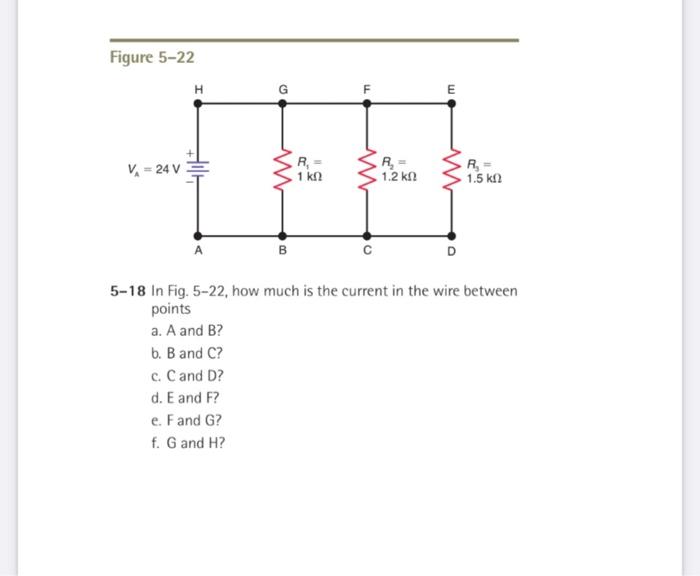

Figure 5-22 V=24 V H ww b. B and C? c. C and D? d. E and F? e. F and G? f. G and H? B R₁ = 1 ΚΩ M R₂ = 1.2 ΚΩ E R₂ = 1.5 ΚΩ 5-18 In Fig. 5-22, how much is the current in the wire between points a. A and B?
