9. Consider the function F(A, B, C, D) = D + A'(B' + C') + ABC a) Use two input AND and two input OR gates to realize th

[answerhappygod]

9 Consider The Function F A B C D D A B C Abc A Use Two Input And And Two Input Or Gates To Realize Th 1 (16.76 KiB) Viewed 8 times

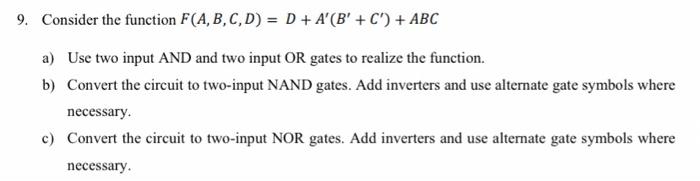

9. Consider the function F(A, B, C, D) = D + A'(B' + C') + ABC a) Use two input AND and two input OR gates to realize the function. b) Convert the circuit to two-input NAND gates. Add inverters and use alternate gate symbols where necessary. c) Convert the circuit to two-input NOR gates. Add inverters and use alternate gate symbols where necessary.
