7. Realize f(a, b, c, d) = m(0, 4, 5, 9, 13, 14, 15) with an 8-to-1 Mux. a) Consider a, b, c as selection lines S2 (MSB)

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

7. Realize f(a, b, c, d) = m(0, 4, 5, 9, 13, 14, 15) with an 8-to-1 Mux. a) Consider a, b, c as selection lines S2 (MSB)

Post by answerhappygod »

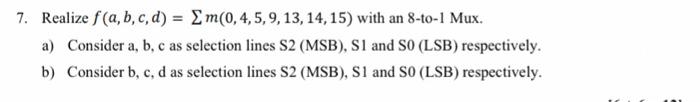

7 Realize F A B C D M 0 4 5 9 13 14 15 With An 8 To 1 Mux A Consider A B C As Selection Lines S2 Msb 1
7 Realize F A B C D M 0 4 5 9 13 14 15 With An 8 To 1 Mux A Consider A B C As Selection Lines S2 Msb 1 (11.24 KiB) Viewed 12 times
7. Realize f(a, b, c, d) = m(0, 4, 5, 9, 13, 14, 15) with an 8-to-1 Mux. a) Consider a, b, c as selection lines S2 (MSB), S1 and S0 (LSB) respectively. b) Consider b, c, d as selection lines S2 (MSB), S1 and S0 (LSB) respectively.
