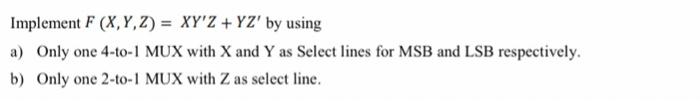

Implement F (X,Y,Z) = XY'Z + YZ' by using
a)
Onlv one 4-to-1 MUX with X and Y as Select lines for MSB and LSB respectively.
b)
Only one 2-to-1 MUX with Z as select line.
Implement F X Y Z Xy Z Yz By Using A Onlv One 4 To 1 Mux With X And Y As Select Lines For Msb And Lsb Respective 1 (9.24 KiB) Viewed 11 times
Implement F (X,Y,Z) = XY'Z + YZ' by using a) Only one 4-to-1 MUX with X and Y as Select lines for MSB and LSB respectively. b) Only one 2-to-1 MUX with Z as select line.
