Question 2 (a) Consider the intensities of a 3-bit image in Figure Q2(a), identify the process of image processing by co

[answerhappygod]

Question 2 A Consider The Intensities Of A 3 Bit Image In Figure Q2 A Identify The Process Of Image Processing By Co 1 (80.68 KiB) Viewed 23 times

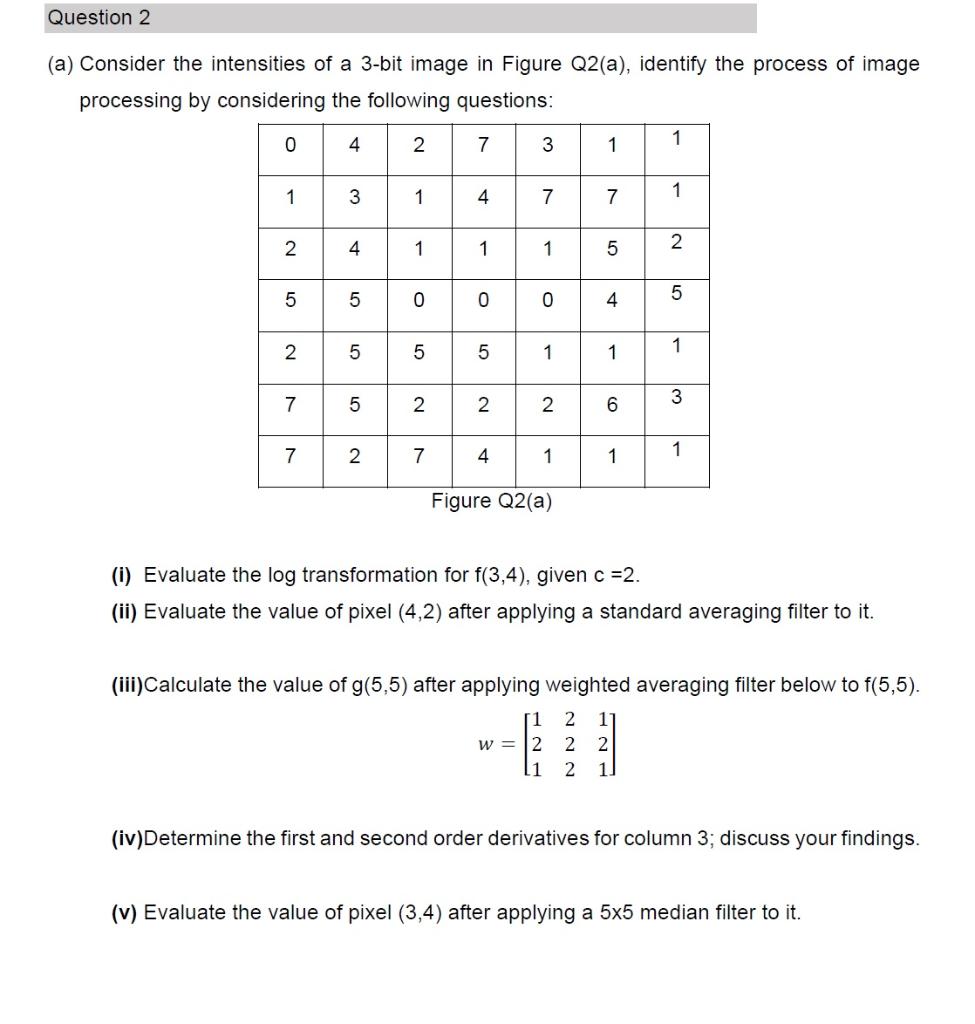

Question 2 (a) Consider the intensities of a 3-bit image in Figure Q2(a), identify the process of image processing by considering the following questions: 0 4 2 7 1 2 5 2 7 7 3 4 5 5 5 2 1 1 0 5 2 7 4 1 0 5 2 4 3 7 0 1 2 1 Figure Q2(a) 1 7 5 4 1 6 1 1 1 2 5 01 1 3 1 (i) Evaluate the log transformation for f(3,4), given c =2. (ii) Evaluate the value of pixel (4,2) after applying a standard averaging filter to it. (iii) Calculate the value of g(5,5) after applying weighted averaging filter below to f(5,5). 1 2 1 w = 2 2 2 1 2 1. (iv)Determine the first and second order derivatives for column 3; discuss your findings. (v) Evaluate the value of pixel (3,4) after applying a 5x5 median filter to it.
