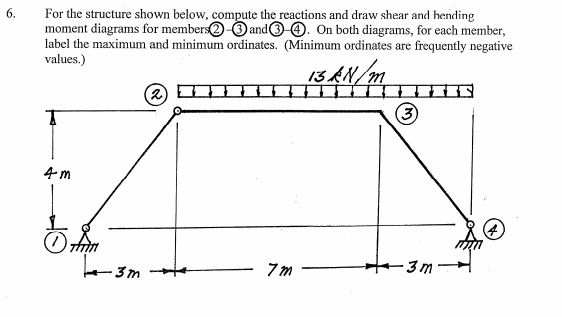

6. For the structure shown below, compute the reactions and draw shear and hending moment diagrams for members and 3-4.

[answerhappygod]

6 For The Structure Shown Below Compute The Reactions And Draw Shear And Hending Moment Diagrams For Members And 3 4 1 (42.82 KiB) Viewed 10 times

6. For the structure shown below, compute the reactions and draw shear and hending moment diagrams for members and 3-4. On both diagrams, for each member, label the maximum and minimum ordinates. (Minimum ordinates are frequently negative values.) 13 kN/m T 4m Othm -3m (2) 7m (3) -3m-
