- Assignment 5 Biaxial Bending Problem Check The Beam Shown For Compliance With The Nscp Specification Lateral Support 1 (84.59 KiB) Viewed 12 times

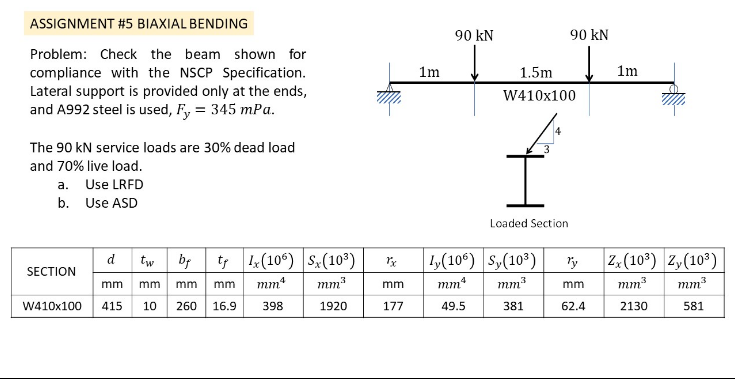

ASSIGNMENT #5 BIAXIAL BENDING Problem: Check the beam shown for compliance with the NSCP Specification. Lateral support is provided only at the ends, and A992 steel is used, F, = 345 mPa. The 90 kN service loads are 30% dead load and 70% live load. Use LRFD Use ASD a. b. SECTION d___tw_by_ty_4x(106) Sx(10³) mm³ 1920 mmª mm mm mm mm W410x100 415 10 260 16.9 398 1m 90 kN 1.5m W410x100 I Loaded Section 90 kN rx mm mmª mm³ 177 49.5 381 ly(106) Sy(10³) Ty mm 62.4 1m Zx (10³) Zy (10³) mm.³ mm³ 2130 581
