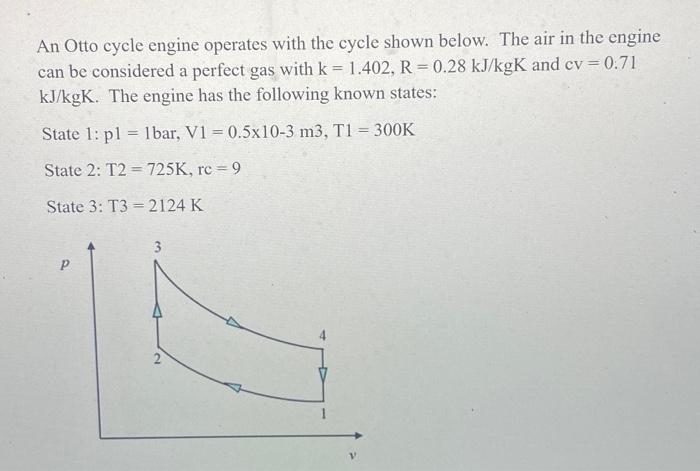

An Otto cycle engine operates with the cycle shown below. The air in the engine can be considered a perfect gas with k = 1.402, R = 0.28 kJ/kgK and cv = 0.71 kJ/kgK. The engine has the following known states: State 1: pl = 1 bar, V1 = 0.5x10-3 m3, T1 = 300K State 2: T2=725K, rc = 9 State 3: T3 2124 K P 3 2

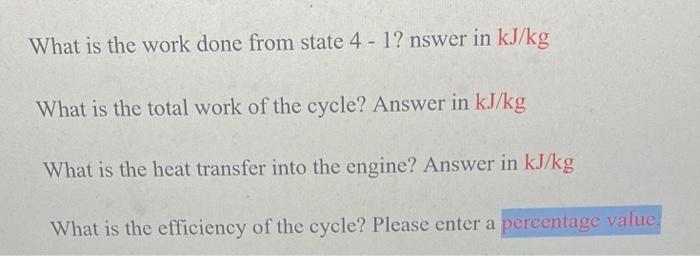

What is the work done from state 4 - 1? nswer in kJ/kg What is the total work of the cycle? Answer in kJ/kg What is the heat transfer into the engine? Answer in kJ/kg What is the efficiency of the cycle? Please enter a percentage value.
