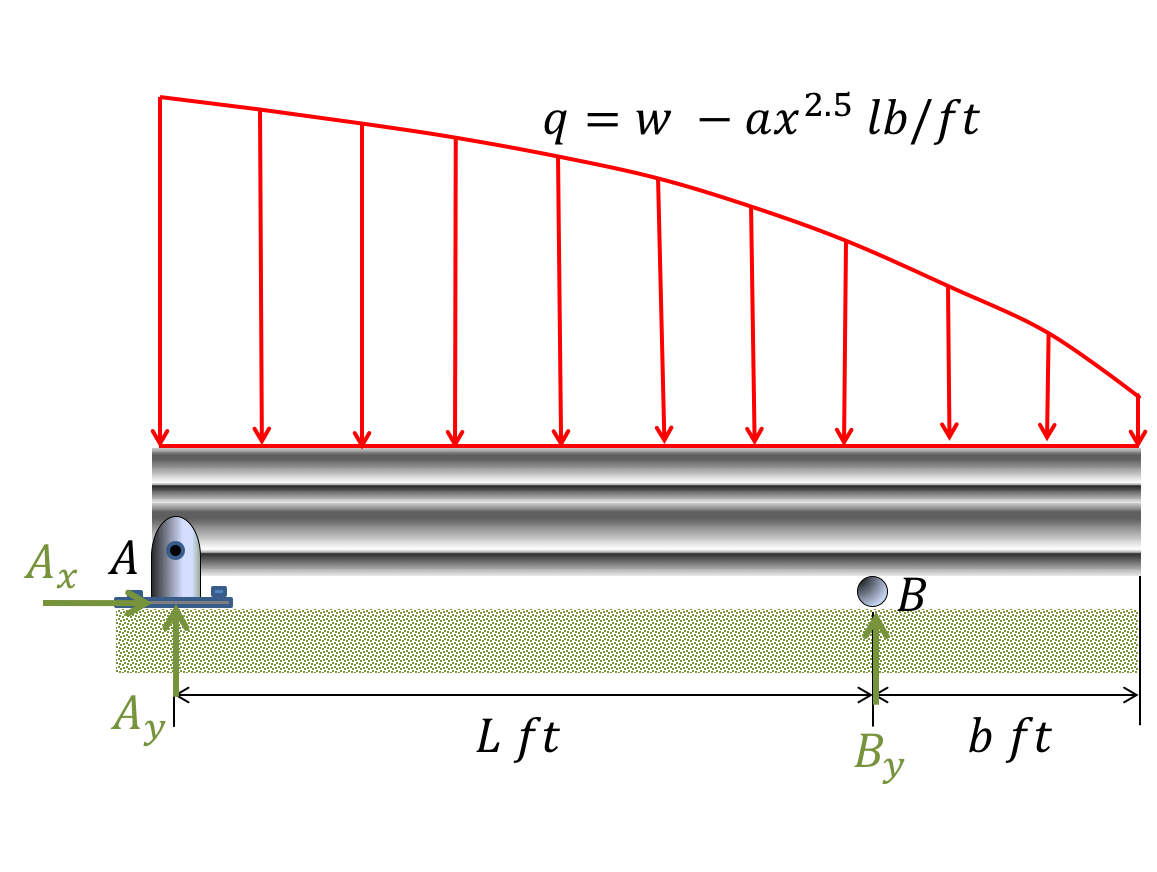

Calculate The Reactions At Supports A And B W 714 Lb Ft A 0 2 Lb Ft L 11 Ft B 4 Ft 1 The 1 (73.39 KiB) Viewed 12 times
w = 714 lb/ft. a = 0.2 lb/ft. l = 11 ft. b = 4 ft
1. The horizontal reaction at A.
lb
2. The vertical reaction at A.
lb
3. The vertical reaction at B.
lb
Ax A Ay q = w L ft ax2.5 lb/ft OB By b ft
