a) Given the values for Vcc= 10.7V, Vbb-5.7V,Re=1 k2, R₂ = 2 kn, Rb = 10 kn, Vie = 0.7 V and = 99. Determine value for V
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am

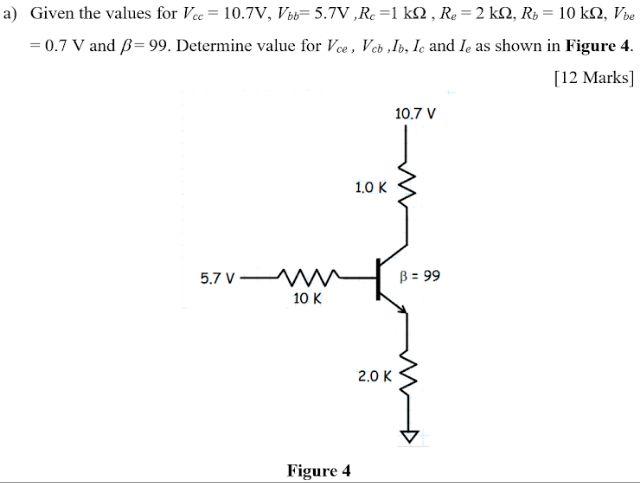

a) Given the values for Vcc= 10.7V, Vbb-5.7V,Re=1 k2, R₂ = 2 kn, Rb = 10 kn, Vie = 0.7 V and = 99. Determine value for V
