A circuit is constructed using two batteries and three resistors as shown in the figure. The batteries have voltages Va

Post by answerhappygod »

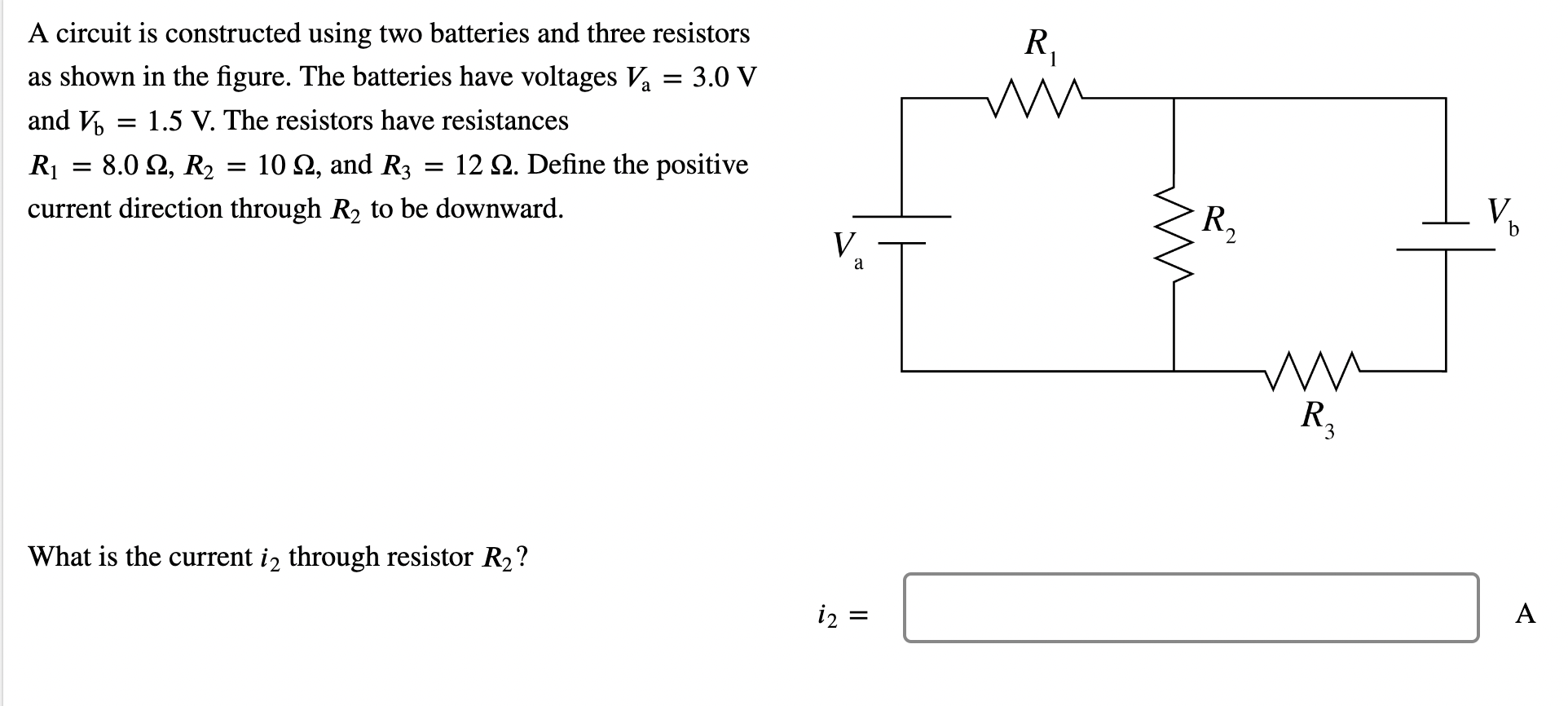

A Circuit Is Constructed Using Two Batteries And Three Resistors As Shown In The Figure The Batteries Have Voltages Va 1
A Circuit Is Constructed Using Two Batteries And Three Resistors As Shown In The Figure The Batteries Have Voltages Va 1 (261.51 KiB) Viewed 35 times
A circuit is constructed using two batteries and three resistors as shown in the figure. The batteries have voltages Va = 3.0 V = 1.5 V. The resistors have resistances and Vb R₁ = 8.0 9, R₂ 109, and R3 = 12 2. Define the positive current direction through R₂ to be downward. = What is the current i2 through resistor R₂? V a = R₁ ww m R₁ m R₂ 3 A
