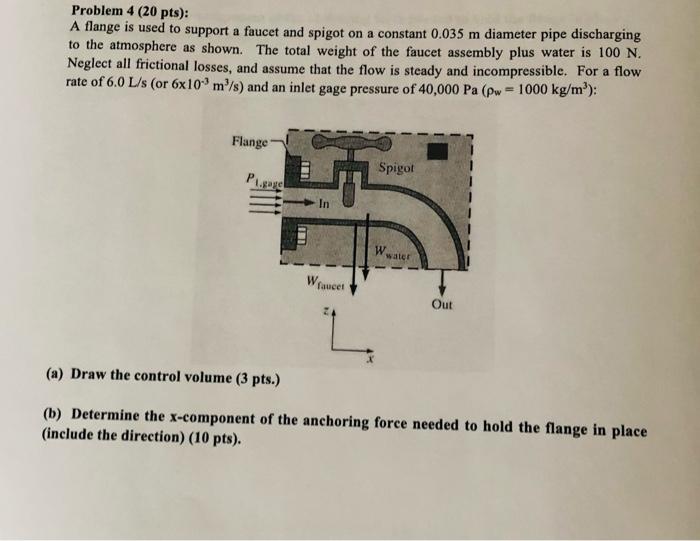

Problem 4 20 Pts A Flange Is Used To Support A Faucet And Spigot On A Constant 0 035 M Diameter Pipe Discharging To T 1 (39.67 KiB) Viewed 22 times

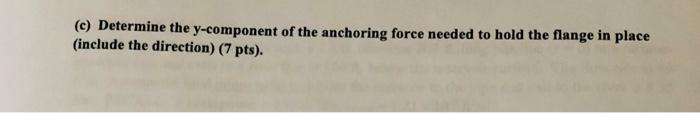

Problem 4 20 Pts A Flange Is Used To Support A Faucet And Spigot On A Constant 0 035 M Diameter Pipe Discharging To T 2 (8.5 KiB) Viewed 22 times
Problem 4 (20 pts): A flange is used to support a faucet and spigot on a constant 0.035 m diameter pipe discharging to the atmosphere as shown. The total weight of the faucet assembly plus water is 100 N. Neglect all frictional losses, and assume that the flow is steady and incompressible. For a flow rate of 6.0 L/s (or 6x10 m³/s) and an inlet gage pressure of 40,000 Pa (pw = 1000 kg/m³): Flange Pl.gage m W faucet L Spigot water Out (a) Draw the control volume (3 pts.) (b) Determine the x-component of the anchoring force needed to hold the flange in place (include the direction) (10 pts).
(c) Determine the y-component of the anchoring force needed to hold the flange in place (include the direction) (7 pts).
