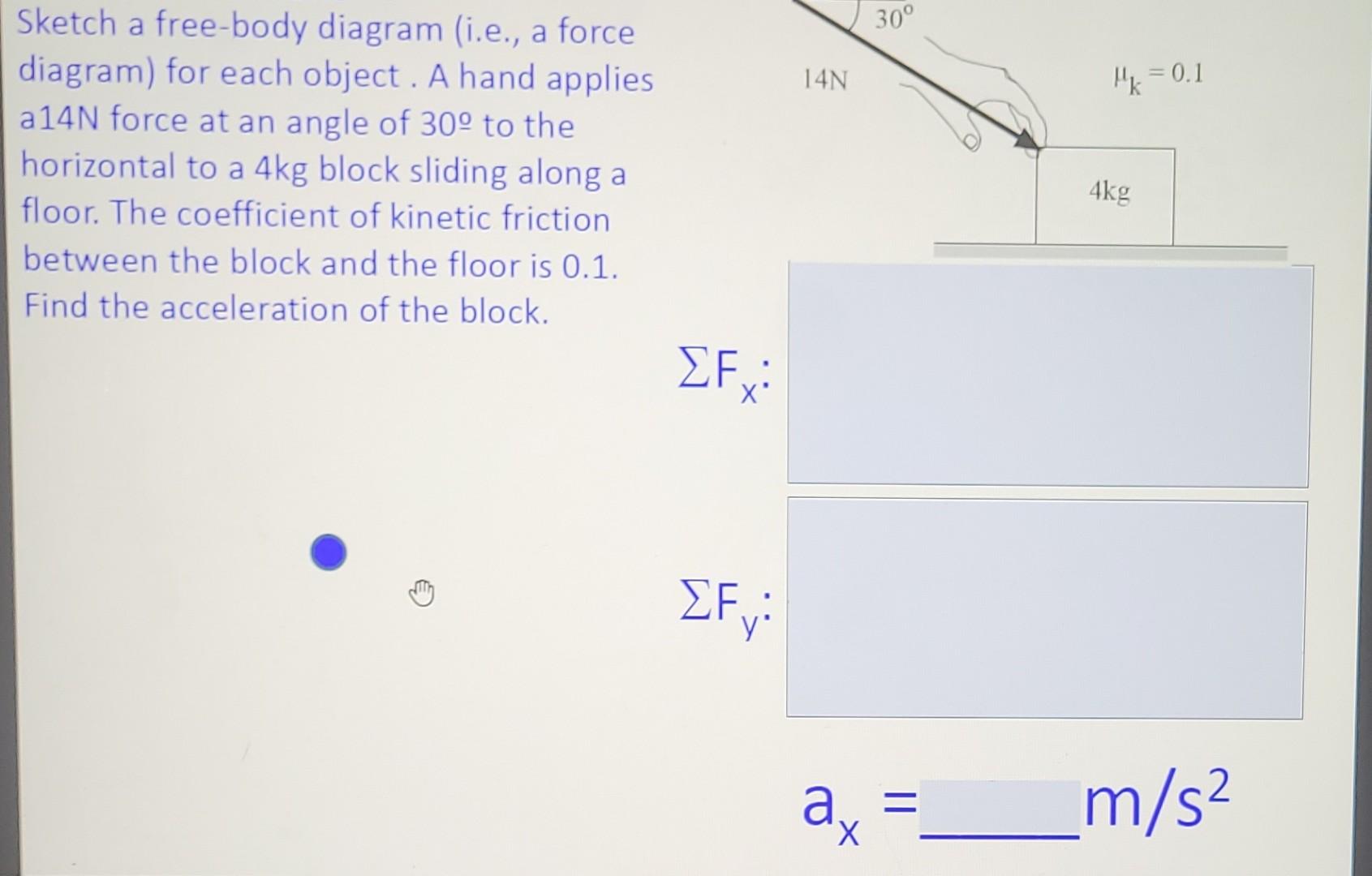

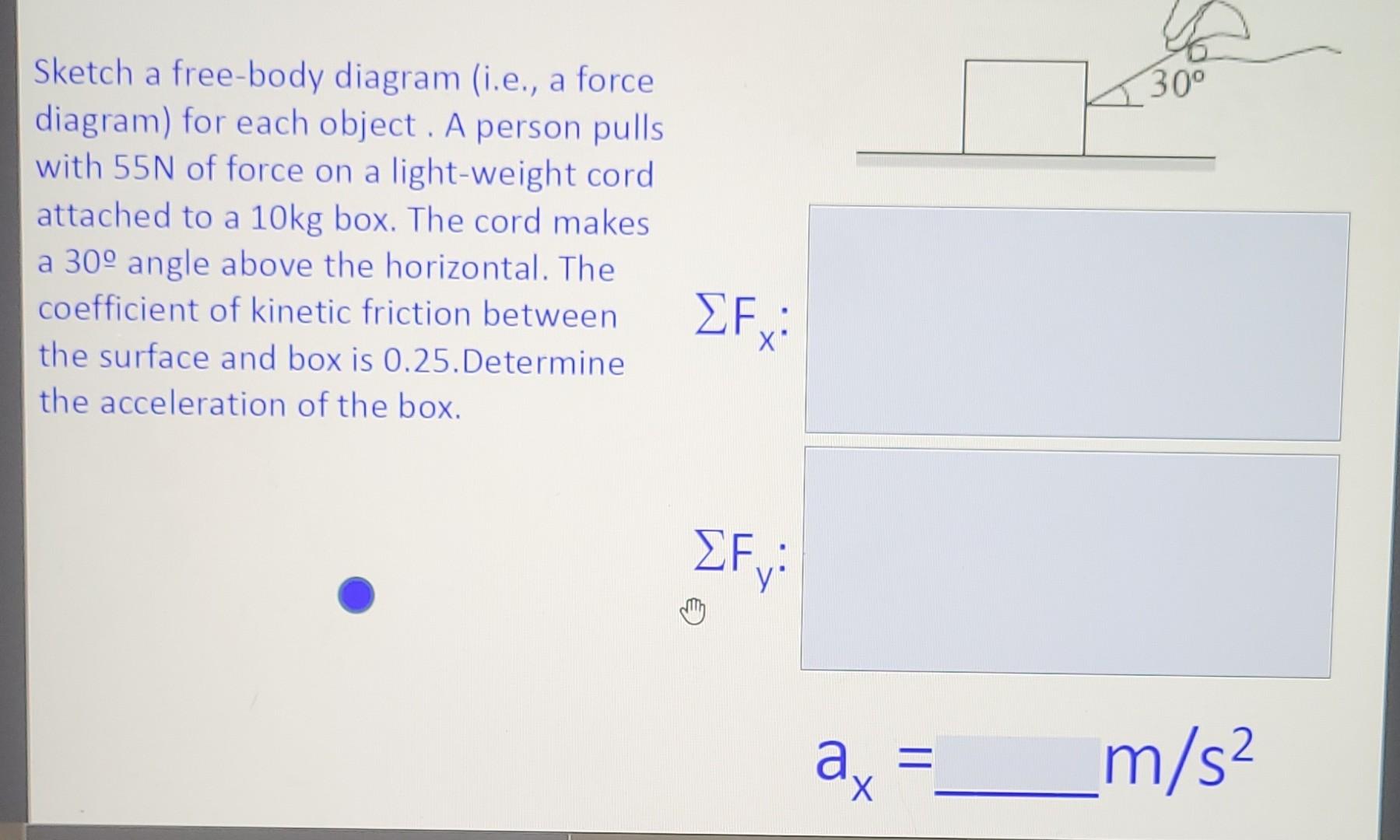

Sketch a free-body diagram (i.e., a force diagram) for each object. A hand applies a14N force at an angle of 30° to the horizontal to a 4kg block sliding along a floor. The coefficient of kinetic friction between the block and the floor is 0.1. Find the acceleration of the block. ΣF.: ΣΕ: 14N 30° a¸ = X k=0.1 4kg m/s²

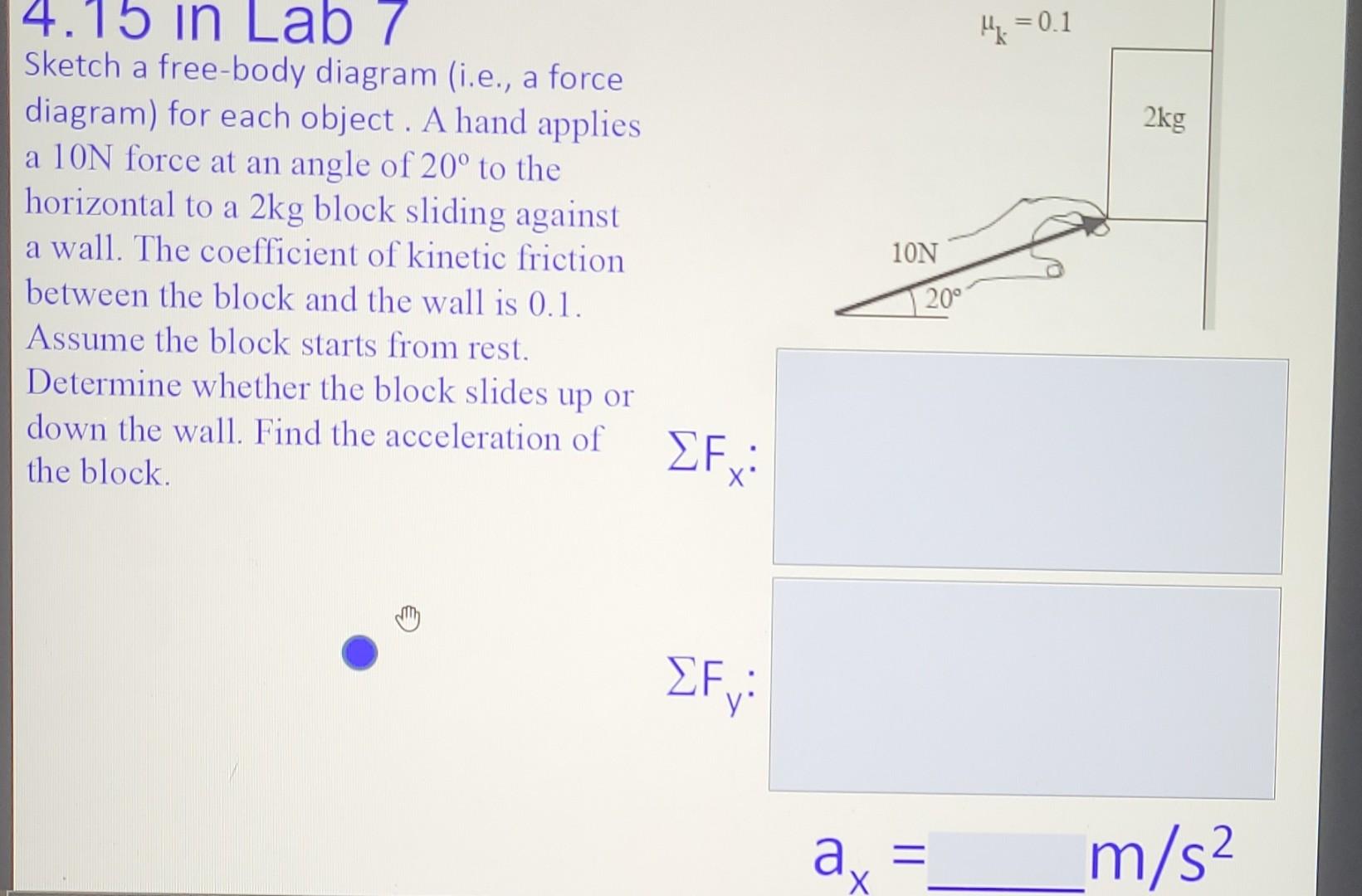

4.15 in Lab 7 Sketch a free-body diagram (i.e., a force diagram) for each object. A hand applies a 10N force at an angle of 20° to the horizontal to a 2kg block sliding against a wall. The coefficient of kinetic friction between the block and the wall is 0.1. Assume the block starts from rest. Determine whether the block slides up or down the wall. Find the acceleration of the block. ΣΕ: ΣΕ: 10N 20° a = ₁0.1 2kg 2 m/s²
