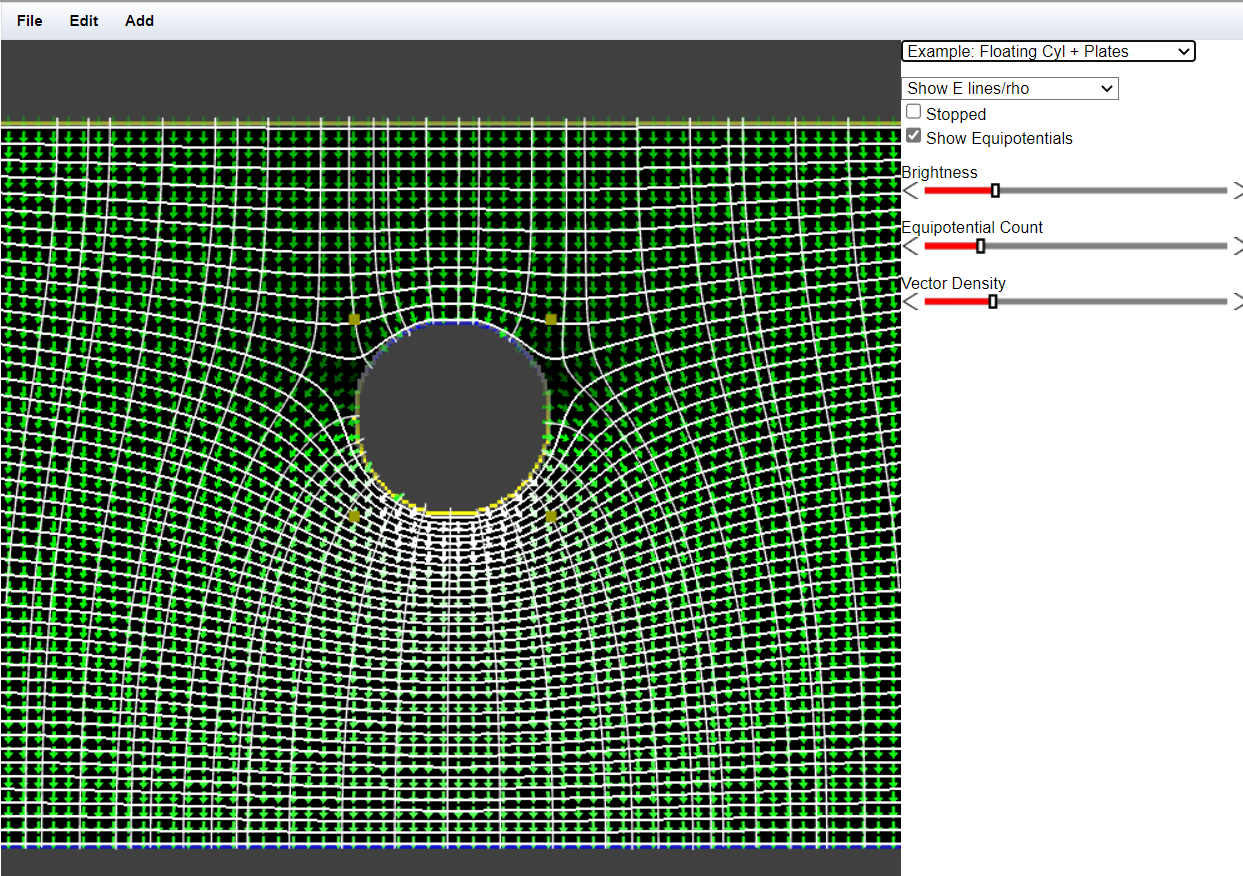

File Edit Add Example: Floating Cyl + Plates Show E lines/rho O Stopped ✔Show Equipotentials Brightness Equipotential Count Vector Density

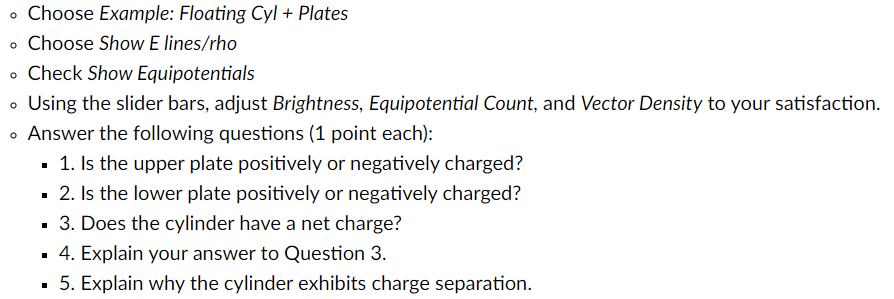

• Choose Example: Floating Cyl + Plates • Choose Show E lines/rho . Check Show Equipotentials Using the slider bars, adjust Brightness, Equipotential Count, and Vector Density to your satisfaction. • Answer the following questions (1 point each): ▪ 1. Is the upper plate positively or negatively charged? ▪ 2. Is the lower plate positively or negatively charged? 3. Does the cylinder have a net charge? ▪ 4. Explain your answer to Question 3. ▪ 5. Explain why the cylinder exhibits charge separation. O
