- A Pressure Versus Volume Pv Diagram For A System Is Shown In The Figure The Arrows Of The Curve Indicate The Directio 1 (50.83 KiB) Viewed 89 times
A pressure versus volume (pV) diagram for a system is shown in the figure. The arrows of the curve indicate the directio
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
A pressure versus volume (pV) diagram for a system is shown in the figure. The arrows of the curve indicate the directio

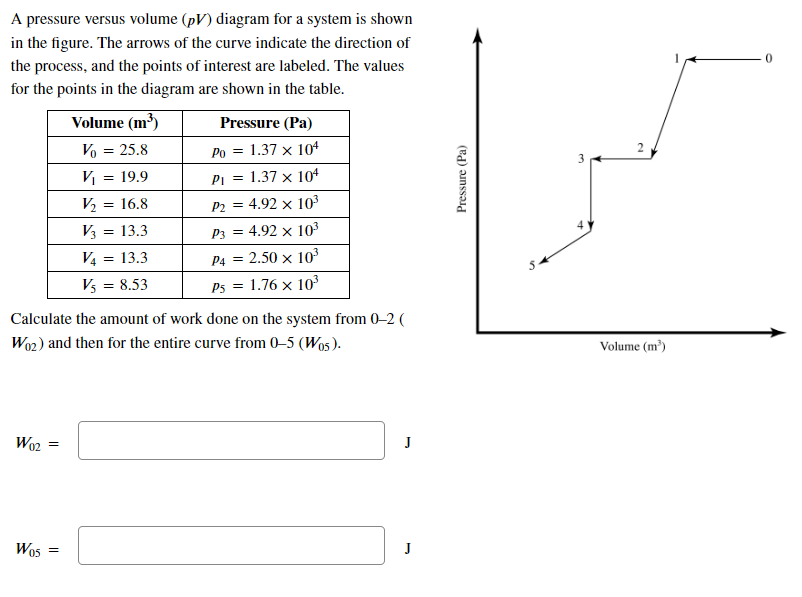

A pressure versus volume (pV) diagram for a system is shown in the figure. The arrows of the curve indicate the direction of the process, and the points of interest are labeled. The values for the points in the diagram are shown in the table. W02 Calculate the amount of work done on the system from 0-2 ( W02) and then for the entire curve from 0-5 (W05). W05 = Volume (m³) Vo = 25.8 V₁ = 19.9 V₂ = 16.8 V3 = 13.3 V4 = 13.3 V5 = 8.53 = Pressure (Pa) Po = 1.37 x 104 P₁ = 1.37 x 104 P2 = 4.92 x 10³ P3 = 4.92 x 10³ P4 = 2.50 × 10³ Ps = 1.76 x 103 J J Pressure (Pa) نیا 3 N Volume (m³)
