4. In the circuit shown in Figure A4, the equivalent resistance between terminals A & B is B a. 0 R1 R3 R2 b. Infinity c

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

4. In the circuit shown in Figure A4, the equivalent resistance between terminals A & B is B a. 0 R1 R3 R2 b. Infinity c

Post by answerhappygod »

4 In The Circuit Shown In Figure A4 The Equivalent Resistance Between Terminals A B Is B A 0 R1 R3 R2 B Infinity C 1
4 In The Circuit Shown In Figure A4 The Equivalent Resistance Between Terminals A B Is B A 0 R1 R3 R2 B Infinity C 1 (17.86 KiB) Viewed 29 times

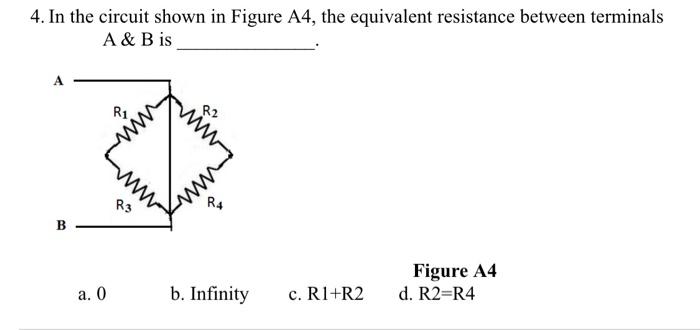

4. In the circuit shown in Figure A4, the equivalent resistance between terminals A & B is B a. 0 R1 R3 R2 b. Infinity c. R1+R2 Figure A4 d. R2=R4
