Question: Consider the stream information below. Stream Supply temperature (°C) 150 170 50 50 H1 H2 C1 C2 Target tempera

[answerhappygod]

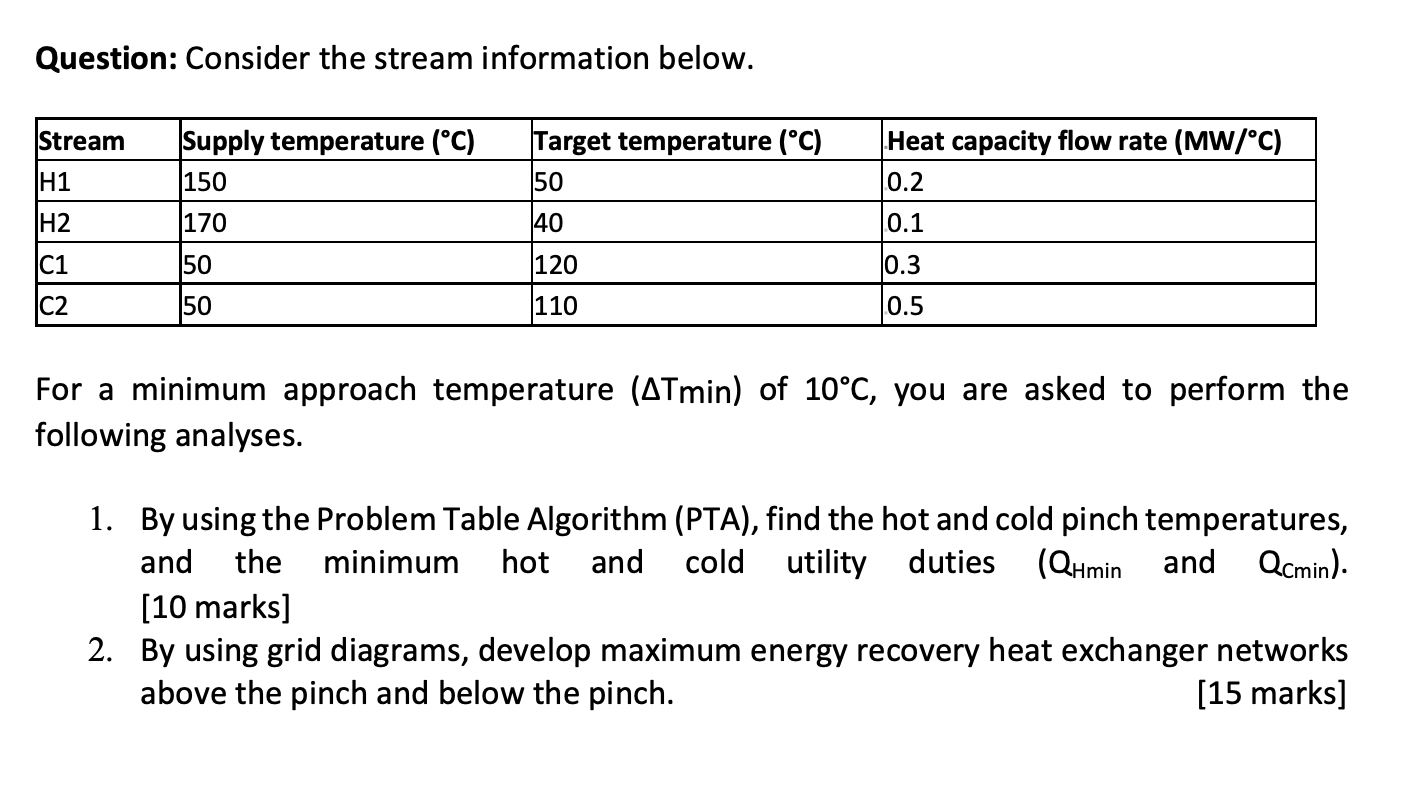

Question Consider The Stream Information Below Stream Supply Temperature C 150 170 50 50 H1 H2 C1 C2 Target Tempera 1 (89.98 KiB) Viewed 31 times

Question: Consider the stream information below. Stream Supply temperature (°C) 150 170 50 50 H1 H2 C1 C2 Target temperature (°C) 50 40 120 110 Heat capacity flow rate (MW/°C) 0.2 0.1 0.3 0.5 For a minimum approach temperature (ATmin) of 10°C, you are asked to perform the following analyses. 1. By using the Problem Table Algorithm (PTA), find the hot and cold pinch temperatures, and the minimum hot and cold utility duties (QHmin and Qcmin). [10 marks] 2. By using grid diagrams, develop maximum energy recovery heat exchanger networks above the pinch and below the pinch. [15 marks]
