A beam is subjected to a uniformly distributed load, 5 kN/m along span AB and point loads 10 kN at C as shown in Figure

Post by answerhappygod »

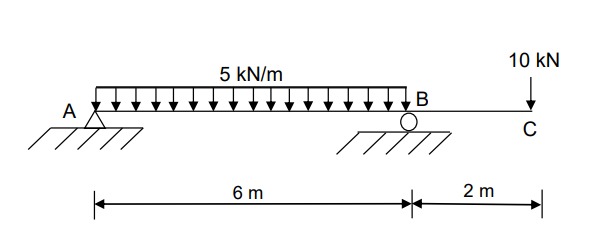

A beam is subjected to a uniformly distributed load, 5 kN/malong span AB and point loads 10 kN at C as shown in Figure Q2.Given E is constant.(a) Determine the reactions at support pin A and roller B.(b) Write an expression of slope and deflection for the beam.(c) Determine the deflection at C
A Beam Is Subjected To A Uniformly Distributed Load 5 Kn M Along Span Ab And Point Loads 10 Kn At C As Shown In Figure 1
A Beam Is Subjected To A Uniformly Distributed Load 5 Kn M Along Span Ab And Point Loads 10 Kn At C As Shown In Figure 1 (16.57 KiB) Viewed 30 times
A 77777 5 kN/m 6 m B A 2 m 10 KN ↓ C
