A pulley is supported by a circular pin at A. The pin has a diameter of d = 0.375 in., and each side of the pulley suppo

Post by answerhappygod »

A Pulley Is Supported By A Circular Pin At A The Pin Has A Diameter Of D 0 375 In And Each Side Of The Pulley Suppo 1
A Pulley Is Supported By A Circular Pin At A The Pin Has A Diameter Of D 0 375 In And Each Side Of The Pulley Suppo 1 (196.43 KiB) Viewed 21 times

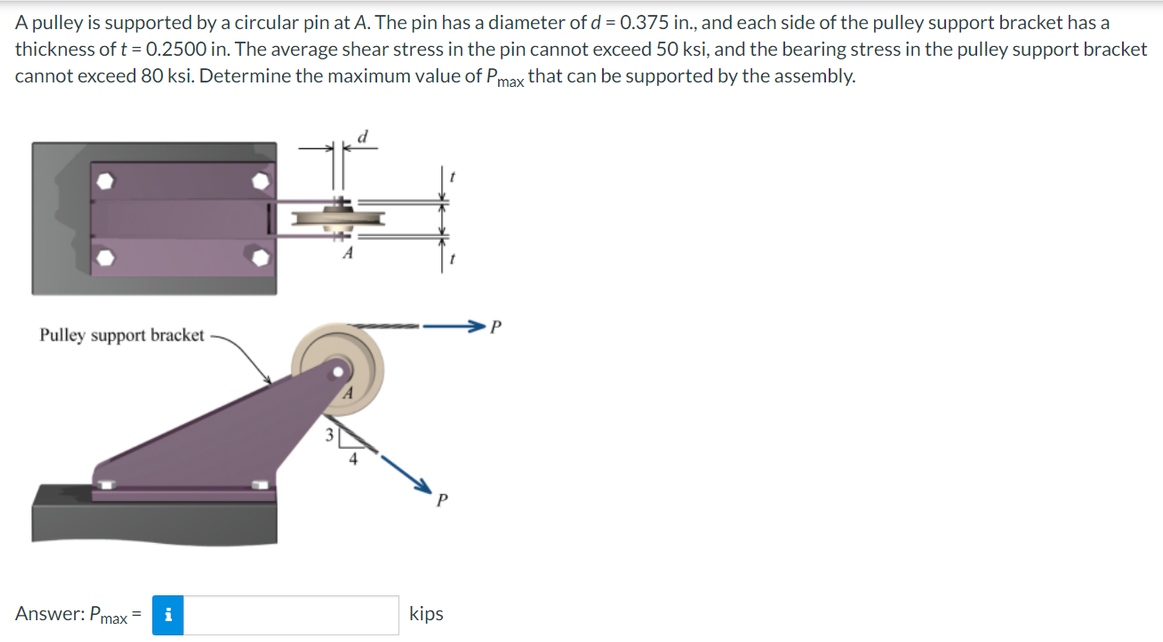

A pulley is supported by a circular pin at A. The pin has a diameter of d = 0.375 in., and each side of the pulley support bracket has a thickness of t = 0.2500 in. The average shear stress in the pin cannot exceed 50 ksi, and the bearing stress in the pulley support bracket cannot exceed 80 ksi. Determine the maximum value of Pmax that can be supported by the assembly. Pulley support bracket Answer: Pmax= kips P
