Question 2 of 10 < > View Policies Current Attempt in Progress A solid steel shaft supports loads PA = 420 N and PD=580

[answerhappygod]

Question 2 Of 10 View Policies Current Attempt In Progress A Solid Steel Shaft Supports Loads Pa 420 N And Pd 580 1 (105.65 KiB) Viewed 35 times

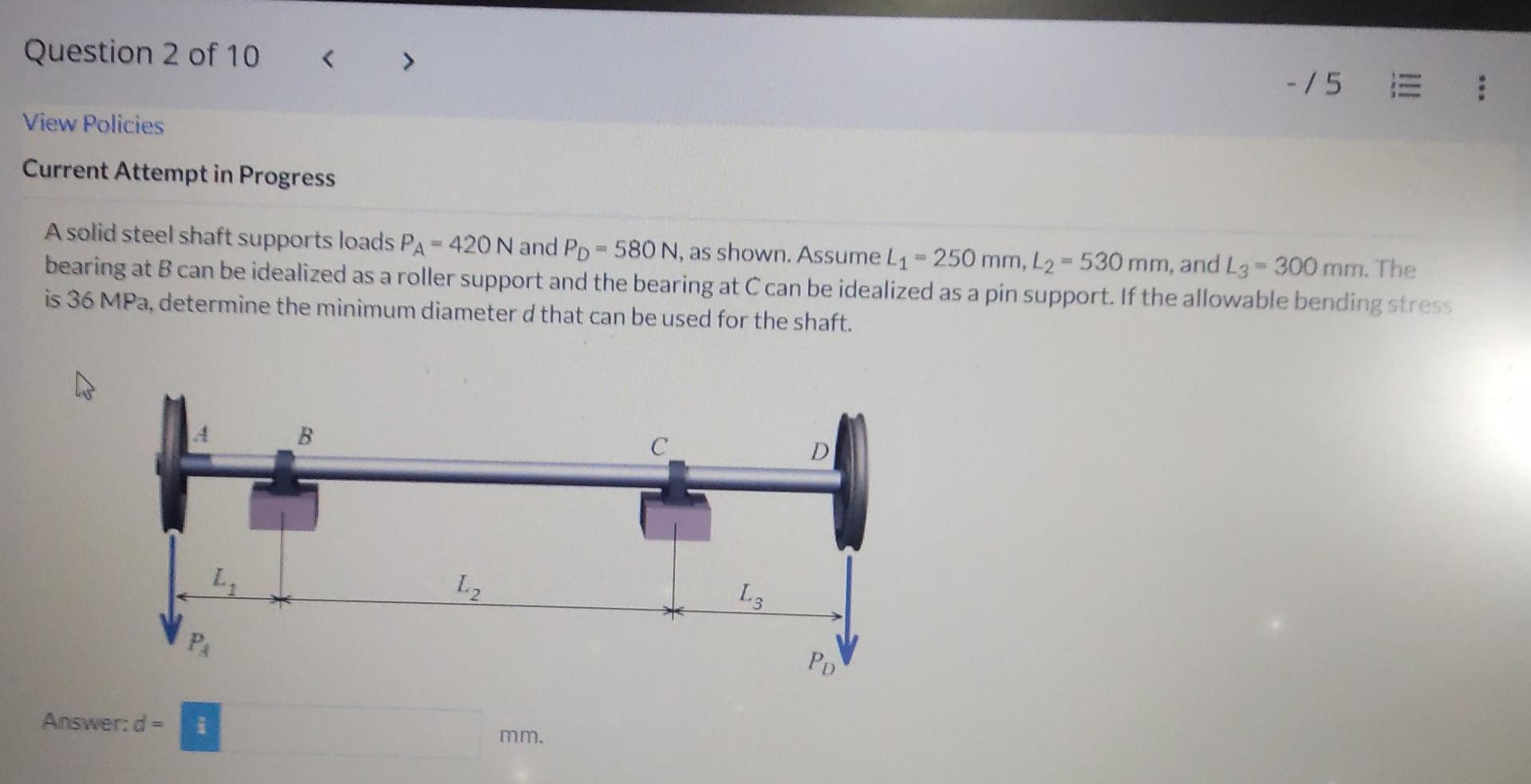

Question 2 of 10 < > View Policies Current Attempt in Progress A solid steel shaft supports loads PA = 420 N and PD=580 N, as shown. Assume L₁ - 250 mm, L2 = 530 mm, and L3 - 300 mm. The bearing at can be idealized as a roller support and the bearing at C can be idealized as a pin support. If the allowable bending stress is 36 MPa, determine the minimum diameter d that can be used for the shaft. Answer: d = 4₁ PA B L₂ mm. C L3 D -15 E Po ***
