1. Using Macaulay's Method, for the beam shown in Figure 1: (i) Determine the reactions; (ii) Draw the bending moment di

[answerhappygod]

1 Using Macaulay S Method For The Beam Shown In Figure 1 I Determine The Reactions Ii Draw The Bending Moment Di 1 (42.97 KiB) Viewed 29 times

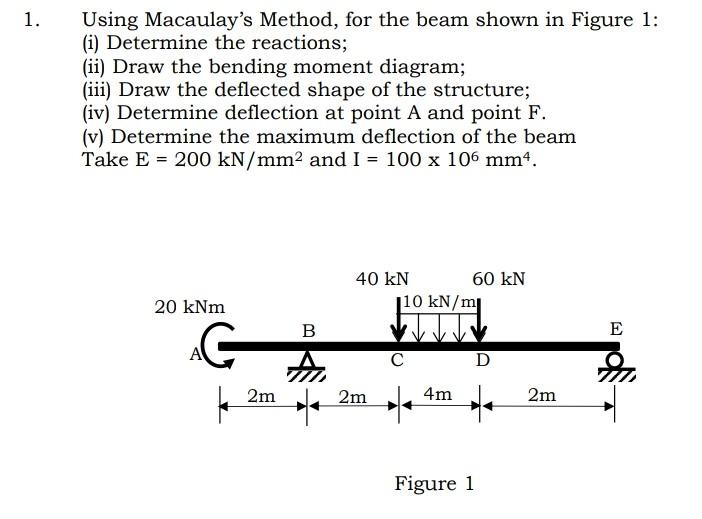

1. Using Macaulay's Method, for the beam shown in Figure 1: (i) Determine the reactions; (ii) Draw the bending moment diagram; (iii) Draw the deflected shape of the structure; (iv) Determine deflection at point A and point F. (v) Determine the maximum deflection of the beam Take E = 200 kN/mm² and I = 100 x 106 mmª. 20 kNm AG 2m B ☆ * 40 kN 2m 10 kN/m C 60 KN 4m D + Figure 1 2m E
