Learning Goal: To determine the maximum allowable axial force applied to a cylindrical column by four different support

[answerhappygod]

Learning Goal To Determine The Maximum Allowable Axial Force Applied To A Cylindrical Column By Four Different Support 1 (104.63 KiB) Viewed 23 times

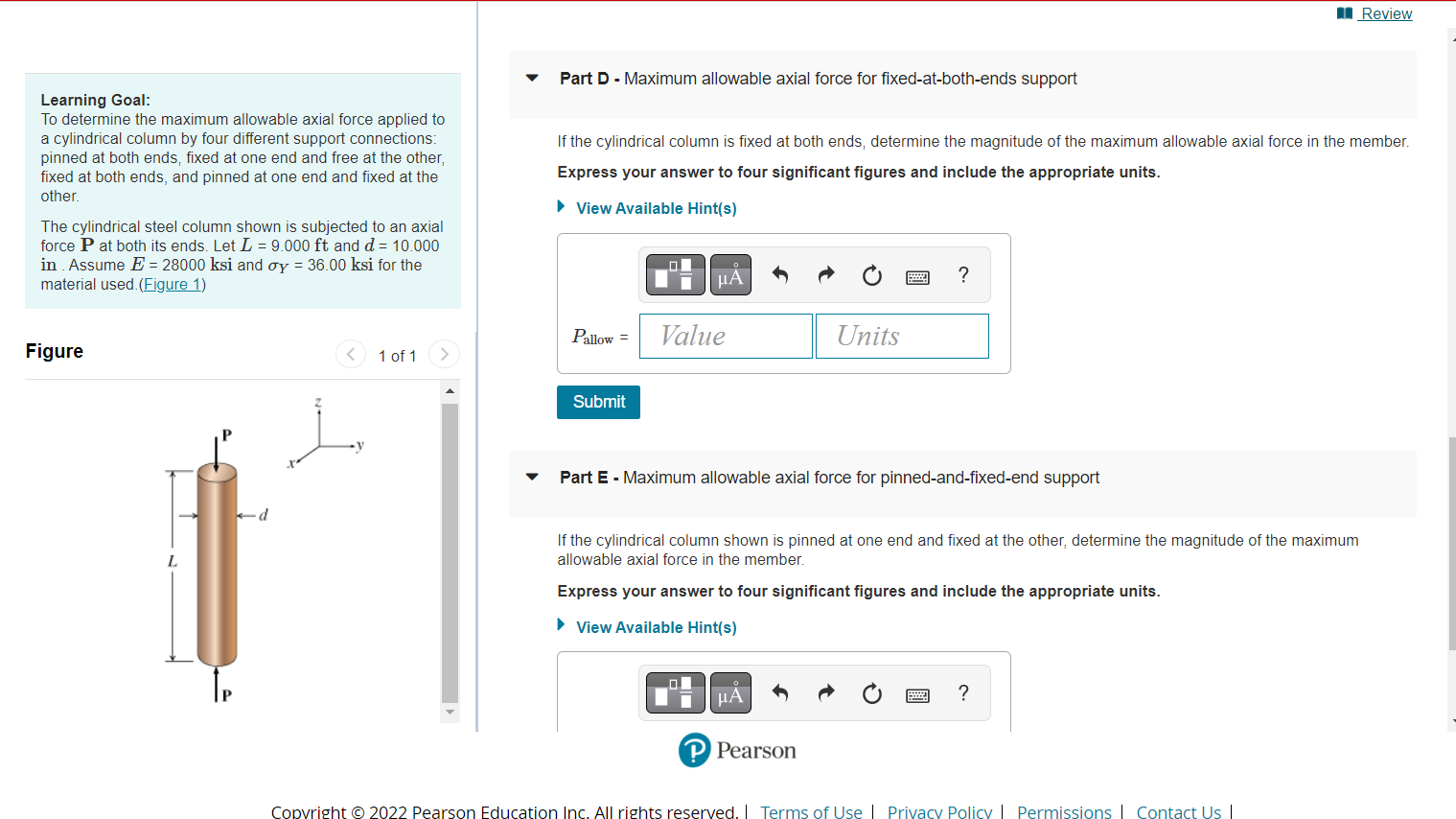

Learning Goal: To determine the maximum allowable axial force applied to a cylindrical column by four different support connections: pinned at both ends, fixed at one end and free at the other, fixed at both ends, and pinned at one end and fixed at the other. The cylindrical steel column shown is subjected to an axial force P at both its ends. Let L = 9.000 ft and d = 10.000 in. Assume E = 28000 ksi and oy = 36.00 ksi for the material used. (Figure 1) Figure L d 1 of 1 Part D - Maximum allowable axial force for fixed-at-both-ends support If the cylindrical column is fixed at both ends, determine the magnitude of the maximum allowable axial force in the member. Express your answer to four significant figures and include the appropriate units. ► View Available Hint(s) μA Pallow= Value Submit Units Part E - Maximum allowable axial force for pinned-and-fixed-end support μA ? If the cylindrical column shown is pinned at one end and fixed at the other, determine the magnitude of the maximum allowable axial force in the member. Express your answer to four significant figures and include the appropriate units. ► View Available Hint(s) P Pearson ? Review Copyright © 2022 Pearson Education Inc. All rights reserved. | Terms of Use | Privacy Policy | Permissions | Contact Us |
