analysis of irregular beam using transformed area method

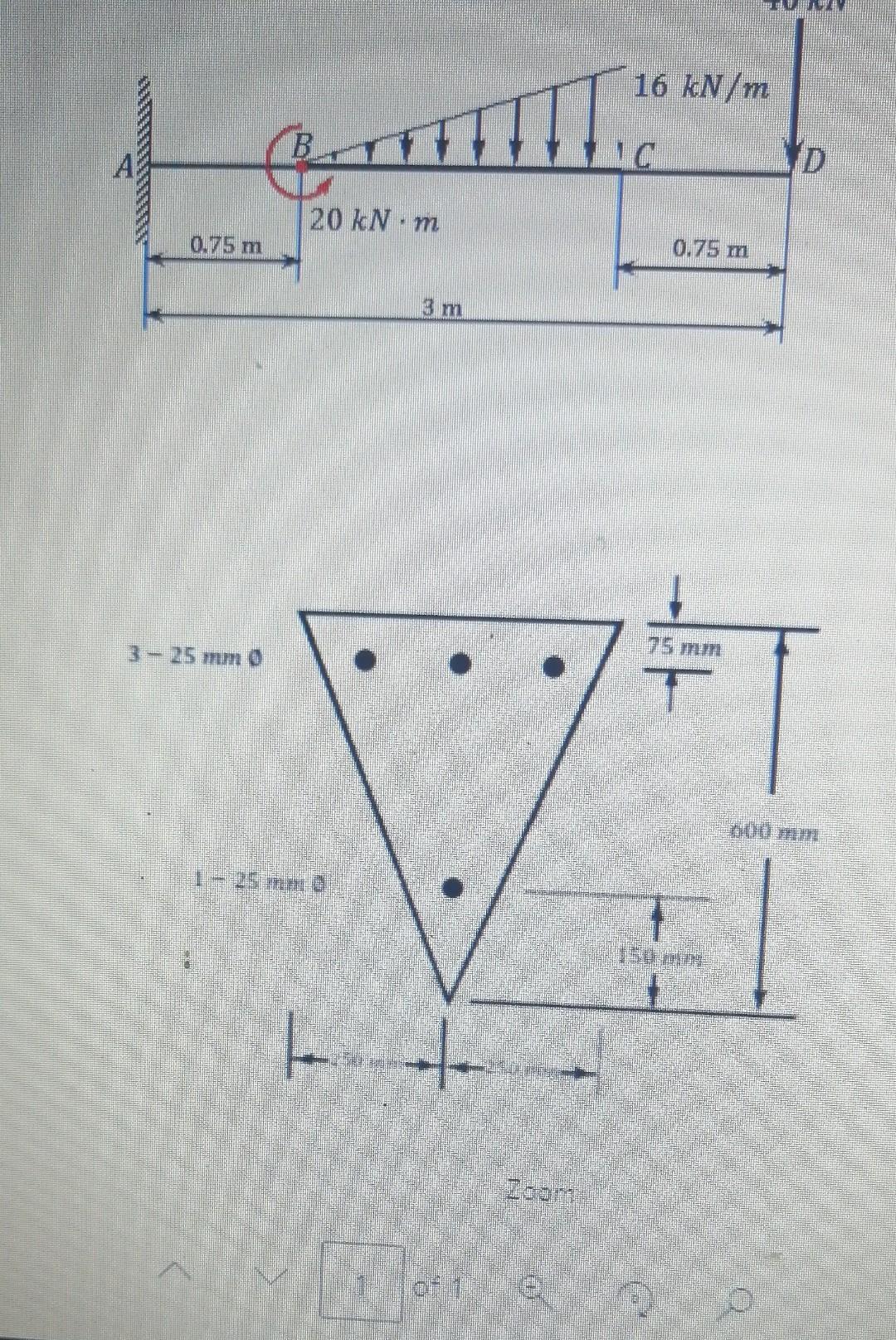

Analysis Of Irregular Beam Using Transformed Area Method Locate The Neutral Axis With Respect To The Bottom Of The Beam 1 (474.8 KiB) Viewed 32 times
locate the neutral axis with respect to the bottom of the beam.cracked moment of inertia with respect to the neutral axis of the beam
n=9 Ma=121kn.m
Br B 0.75 m 3-25 mm 0 20 kN m MI 1- 25 mm 0 L 3 m + 16 kN/m 0.75 m 75 mm 150 MIN D 100 mm
