Part Of The Wall Frame System Used In The Construction Of School Classioms Is Shown In Figure 3a The System Shows Veral 1 (12.38 KiB) Viewed 20 times
Part Of The Wall Frame System Used In The Construction Of School Classioms Is Shown In Figure 3a The System Shows Veral 2 (29.53 KiB) Viewed 20 times

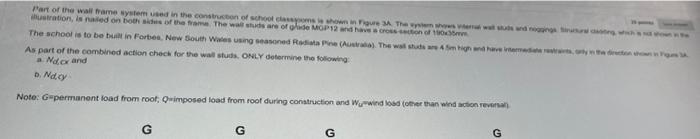

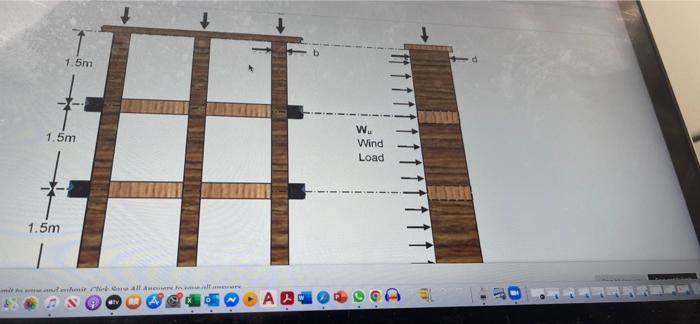

Part of the wall frame system used in the construction of school classioms is shown in Figure 3A The system shows veral wat studs and noggings Suur dating s ilustration, is nailed on both sides of the frame. The wall studs are of glade MGP12 and have a cross section of 190x35mm The school is to be built in Forbes, New South Wales using seasoned Radiata Pine (Australia). The wall studs are 4 5m high and have intermediate ressory in the direction shown in Fig As part of the combined action check for the wall studs, ONLY determine the following a Nd.cx and D. Nd.cy Note: G-permanent load from roof, Quimposed load from roof during construction and Wwind load (other than wind action reversal) G G G G
1.5m 1.5m 1.5m simit ten artine and enhmit Chek Cu All Ancore to all mar W₁ Wind Load inf 19
