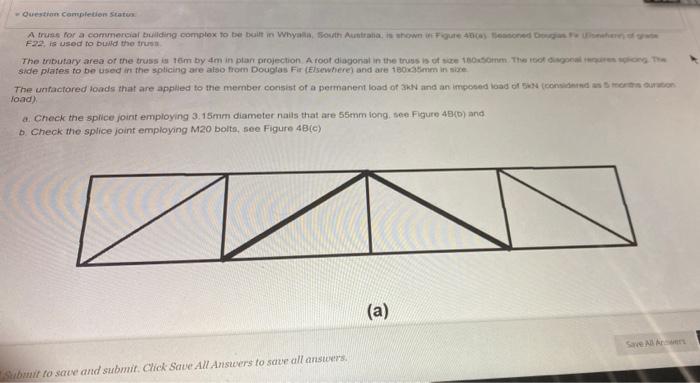

- Question Completion Status A truss for a commercial building complex to be built in Whyalla, South Austrata, is shown in Figure 40(a) Beasoned Douglas Fehere of ge F22, is used to build the truss The tributary area of the truss is 16m by 4m in plan projection A roof diagonal in the truss is of size 180x50mm. The roof diagonal requires splicing. The side plates to be used in the splicing are also from Douglas Fir (Elsewhere) and are 180x35mm in sice The unfactored loads that are applied to the member consist of a permanent load of 3kN and an imposed load of 5kN (considered as 5 months duration load). a. Check the splice joint employing 3.15mm diameter nails that are 55mm long, see Figure 48(b) and b. Check the splice joint employing M20 bolts, see Figure 48(c) Submit to save and submit. Click Save All Answers to save all answers. (a) Save All Arowers

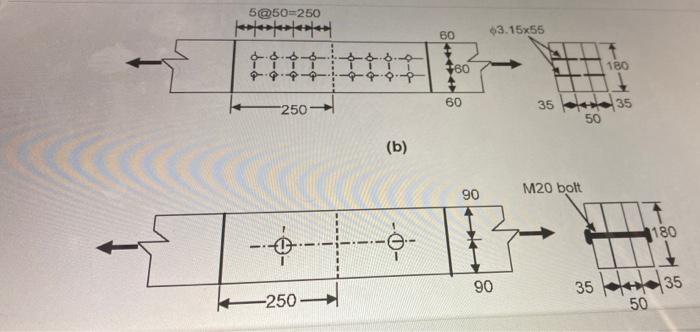

5@50-250 工工 中中中 - 250- ① -250- 6-4 (b) 60 +60 60 90 63.15x55 90 35 M20 bolt 50 35 180 35 50 180 35
