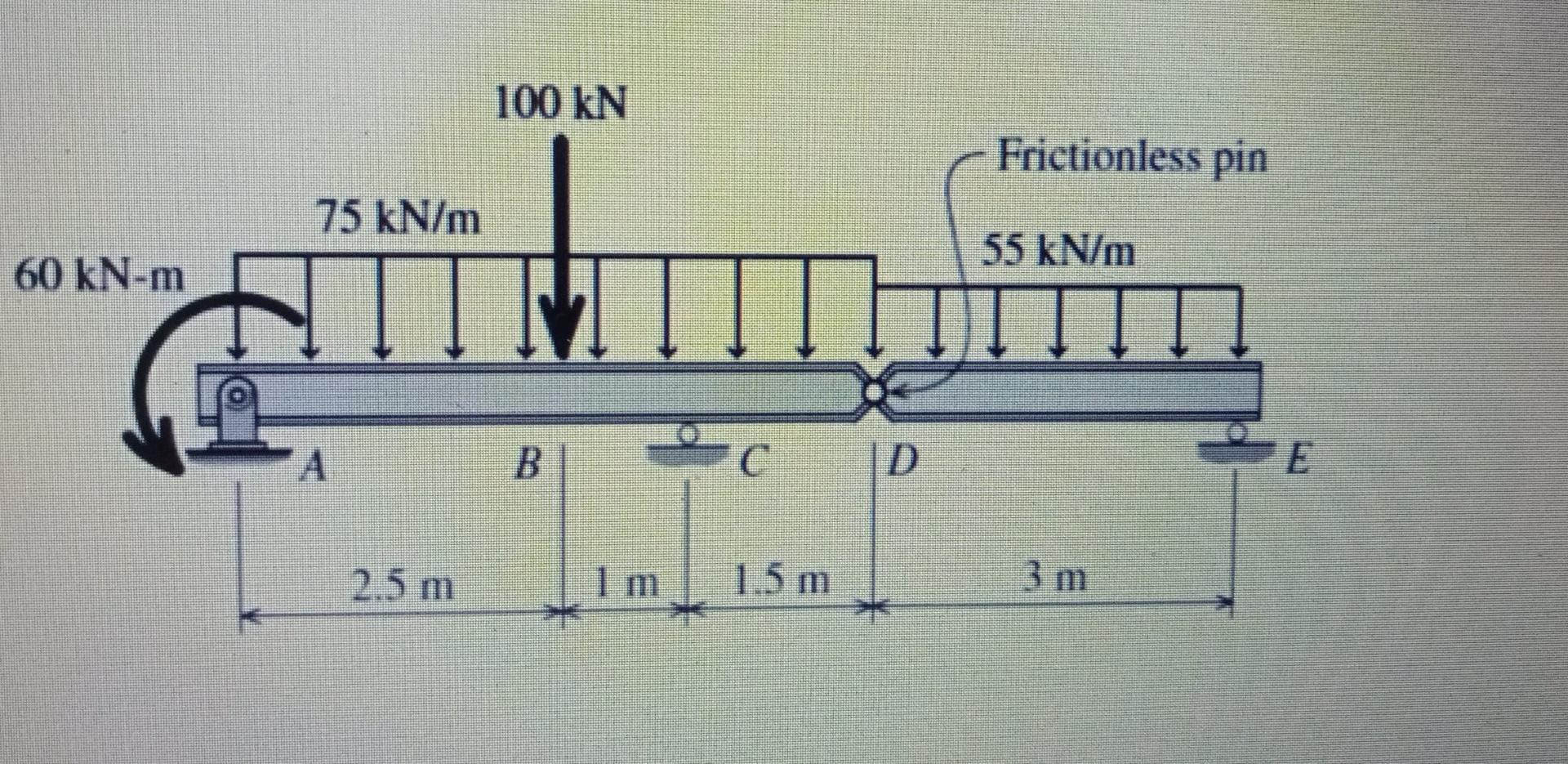

Draw the shear and moment diagram and determine the maximum shear and maximum moment .
please using 3 decimal places in your all solutions.,,thanks
60 kN-m 75 kN/m IT 2.5 m 100 kN M B 1.5 m D Frictionless pin 55 kN/m 3 m E
