2. [50 pts] Shaft CD is made from a 66-mm-diameter rod and is connected to the 48-mm- diameter shaft AB as shown. Consid

Post by answerhappygod »

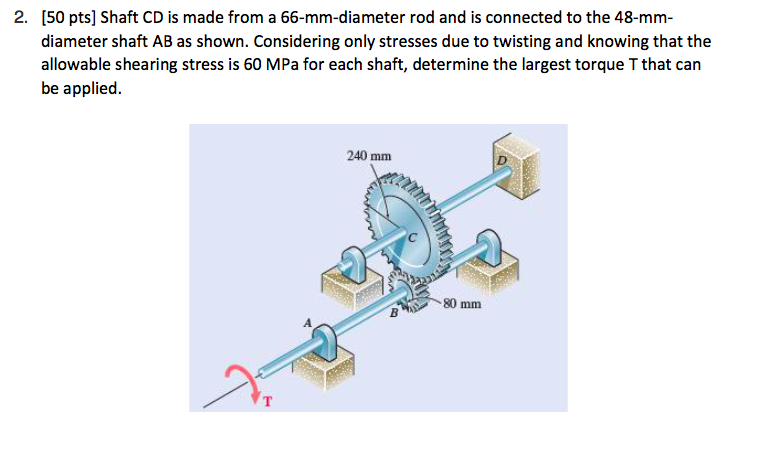

2 50 Pts Shaft Cd Is Made From A 66 Mm Diameter Rod And Is Connected To The 48 Mm Diameter Shaft Ab As Shown Consid 1
2 50 Pts Shaft Cd Is Made From A 66 Mm Diameter Rod And Is Connected To The 48 Mm Diameter Shaft Ab As Shown Consid 1 (128.37 KiB) Viewed 29 times
2. [50 pts] Shaft CD is made from a 66-mm-diameter rod and is connected to the 48-mm- diameter shaft AB as shown. Considering only stresses due to twisting and knowing that the allowable shearing stress is 60 MPa for each shaft, determine the largest torque T that can be applied. T 240 mm 80 mm
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
