For a total flow of 100 l/sec, find the pressure drop betweenpoints A and B. The pipes are in the same horizontal plane.The pipes have the following characteristics:
1- L=100m D=0.2m f=0.02
2- L=60m D=0.2m f=0.02
3- L=40m D=0.2m f=0.02
4- L=40m D=0.15m f=0.02
5- L=60m D=0.15m f=0.02

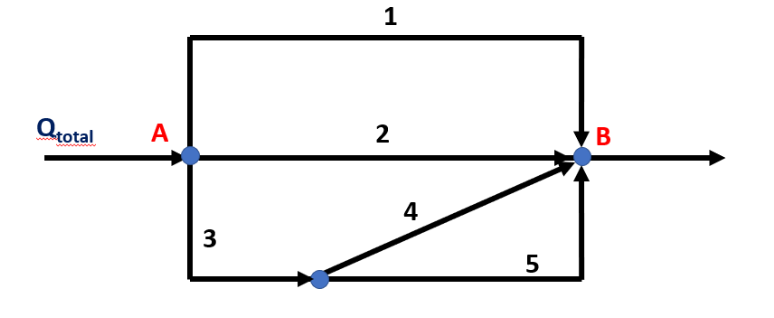

For A Total Flow Of 100 L Sec Find The Pressure Drop Between Points A And B The Pipes Are In The Same Horizontal Plane 1 (16.42 KiB) Viewed 37 times
Qtotal A 3 1 2 4 5 B
