a) Convert the analog voltage Y(t) = 3 sin(2πt) mV into a discrete time signal and show your answer in time domain graph

[answerhappygod]

1 (54.26 KiB) Viewed 35 times

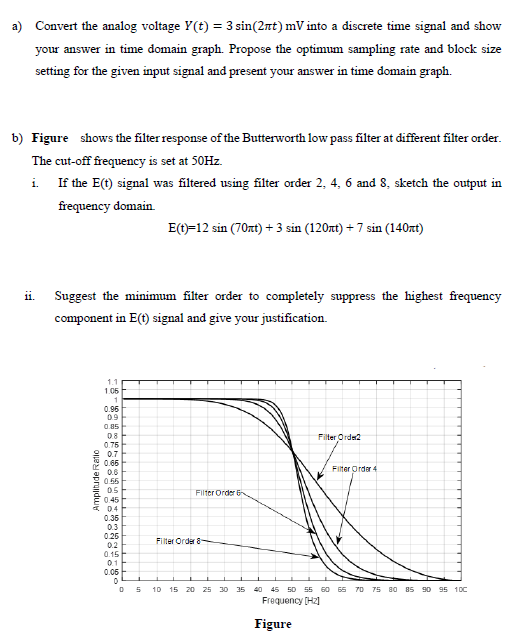

a) Convert the analog voltage Y(t) = 3 sin(2πt) mV into a discrete time signal and show your answer in time domain graph. Propose the optimum sampling rate and block size setting for the given input signal and present your answer in time domain graph. b) Figure shows the filter response of the Butterworth low pass filter at different filter order. The cut-off frequency is set at 50Hz. i. If the E(t) signal was filtered using filter order 2, 4, 6 and 8, sketch the output in frequency domain. 11. Suggest the minimum filter order to completely suppress the highest frequency component in E(t) signal and give your justification. Amplitude Ratio 1.1 1.05 1 0.95 0.9 0.85 0.8 0.75 0.7 0.65 0.8 0.55 0.5 0.45 0.4 0.35 0.3 0.25 0.2 0.15 0.1 0.06 0 E(t)=12 sin (70nt) + 3 sin (120nt)+7 sin (140nt) 0 Filter Order Filter Order 8 5 10 15 20 25 30 35 Filter Orde2 40 45 50 55 60 Frequency [Hz] Figure Filter Order 4 65 70 75 80 85 90 95 10C
