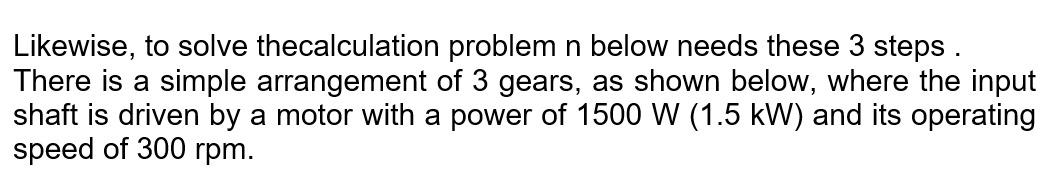

Likewise, to solve thecalculation problem n below needs these 3 steps. There is a simple arrangement of 3 gears, as shown below, where the input shaft is driven by a motor with a power of 1500 W (1.5 kW) and its operating speed of 300 rpm.

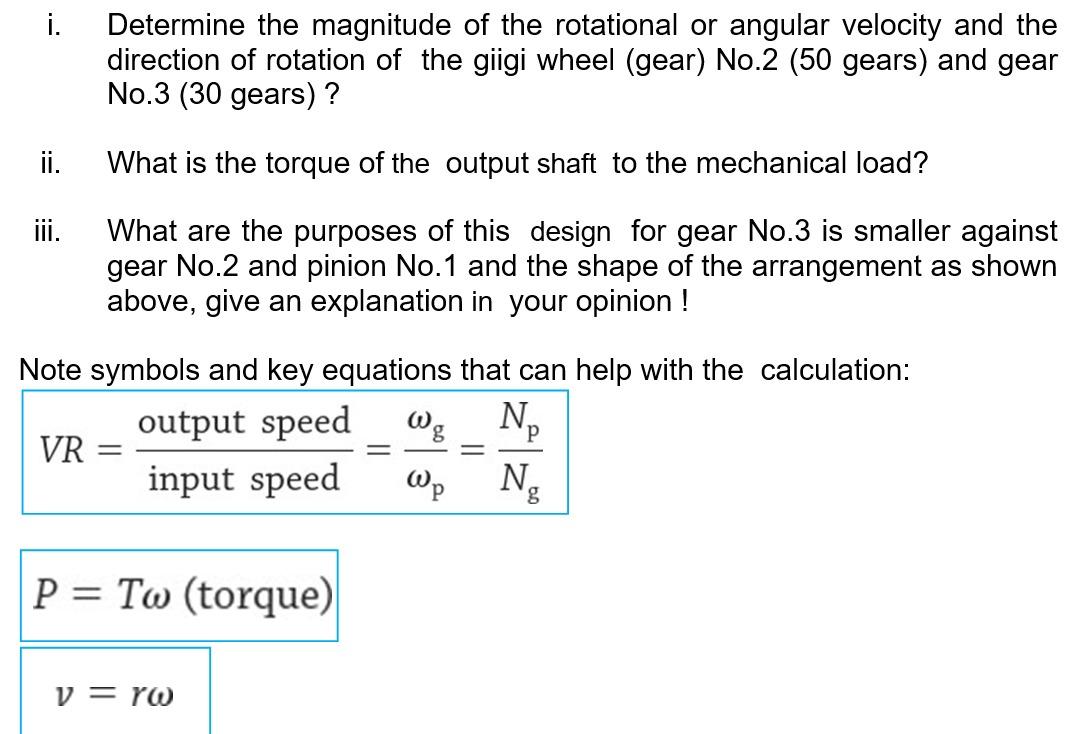

i. ii. iii. Determine the magnitude of the rotational or angular velocity and the direction of rotation of the giigi wheel (gear) No.2 (50 gears) and gear No.3 (30 gears) ? What is the torque of the output shaft to the mechanical load? What are the purposes of this design for gear No.3 is smaller against gear No.2 and pinion No.1 and the shape of the arrangement as shown above, give an explanation in your opinion ! Note symbols and key equations that can help with the calculation: Np VR = N₂ g output speed W g input speed Wp P = Tw (torque) v=rw = =
Inpu 00 No.2, 50 No.1, 80 gears No.3, 30 Outpu
