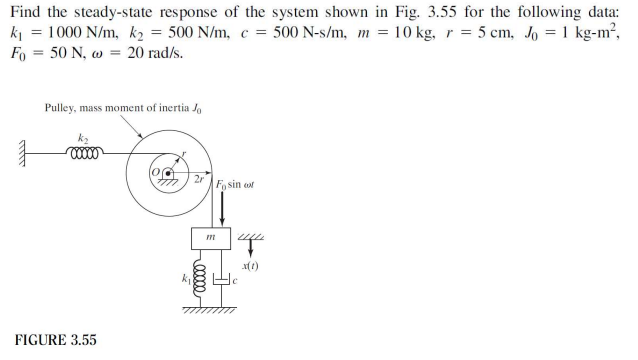

Find the steady-state response of the system shown in Fig. 3.55 for the following data: k₁ = 1000 N/m, k₂ = 500 N/m, c =

[answerhappygod]

Find The Steady State Response Of The System Shown In Fig 3 55 For The Following Data K 1000 N M K 500 N M C 1 (76.75 KiB) Viewed 23 times

Find the steady-state response of the system shown in Fig. 3.55 for the following data: k₁ = 1000 N/m, k₂ = 500 N/m, c = 500 N-s/m, m = 10 kg, r = 5 cm, Jo = 1 kg-m², Fo= 50 N, = 20 rad/s. MIT Pulley, mass moment of inertia Jo FIGURE 3.55 E 00000 Fosin of 4
