A hollow shaft with an outside diameter of 150 mm and inside diameter of 130 mm is subjected to an axial tension load of

Post by answerhappygod »

A Hollow Shaft With An Outside Diameter Of 150 Mm And Inside Diameter Of 130 Mm Is Subjected To An Axial Tension Load Of 1
A Hollow Shaft With An Outside Diameter Of 150 Mm And Inside Diameter Of 130 Mm Is Subjected To An Axial Tension Load Of 1 (20.12 KiB) Viewed 37 times
A Hollow Shaft With An Outside Diameter Of 150 Mm And Inside Diameter Of 130 Mm Is Subjected To An Axial Tension Load Of 2
A Hollow Shaft With An Outside Diameter Of 150 Mm And Inside Diameter Of 130 Mm Is Subjected To An Axial Tension Load Of 2 (14.87 KiB) Viewed 37 times
Please show all steps with neat handwriting

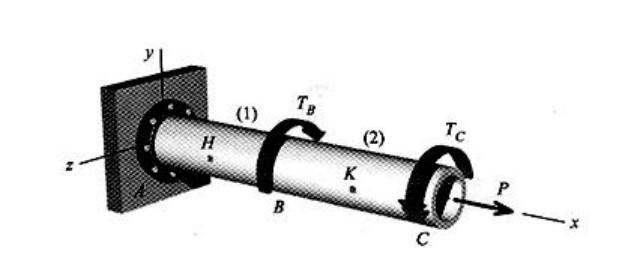

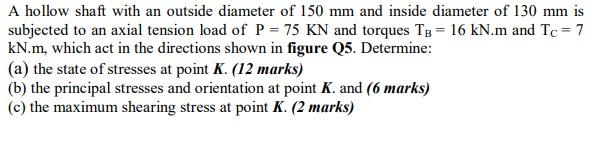

A hollow shaft with an outside diameter of 150 mm and inside diameter of 130 mm is subjected to an axial tension load of P = 75 KN and torques TB = 16 kN.m and Tc = 7 kN.m, which act in the directions shown in figure Q5. Determine: (a) the state of stresses at point K. (12 marks) (b) the principal stresses and orientation at point K. and (6 marks) (c) the maximum shearing stress at point K. (2 marks)
