The structure at right is loaded with two forces of equal magnitude, as shown. These forces will cause internal reaction

Post by answerhappygod »

The Structure At Right Is Loaded With Two Forces Of Equal Magnitude As Shown These Forces Will Cause Internal Reaction 1
The Structure At Right Is Loaded With Two Forces Of Equal Magnitude As Shown These Forces Will Cause Internal Reaction 1 (31.94 KiB) Viewed 27 times

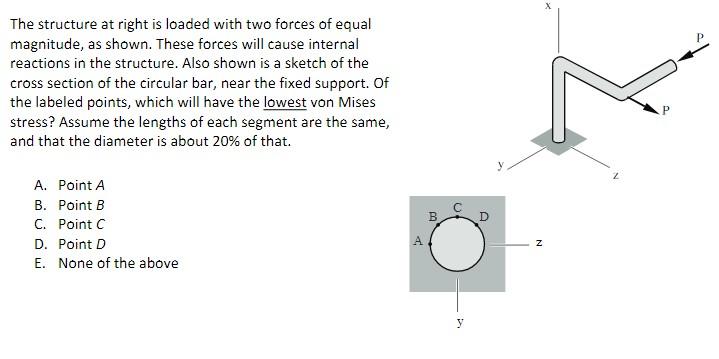

The structure at right is loaded with two forces of equal magnitude, as shown. These forces will cause internal reactions in the structure. Also shown is a sketch of the cross section of the circular bar, near the fixed support. Of the labeled points, which will have the lowest von Mises stress? Assume the lengths of each segment are the same, and that the diameter is about 20% of that. A. Point A B. Point B C. Point C D. Point D E. None of the above A B Z
