Question 6 (20 Marks) Figure Q6 shows a transversely loaded beam with 1 (one) point load, a uniformly distributed load (

Post by answerhappygod »

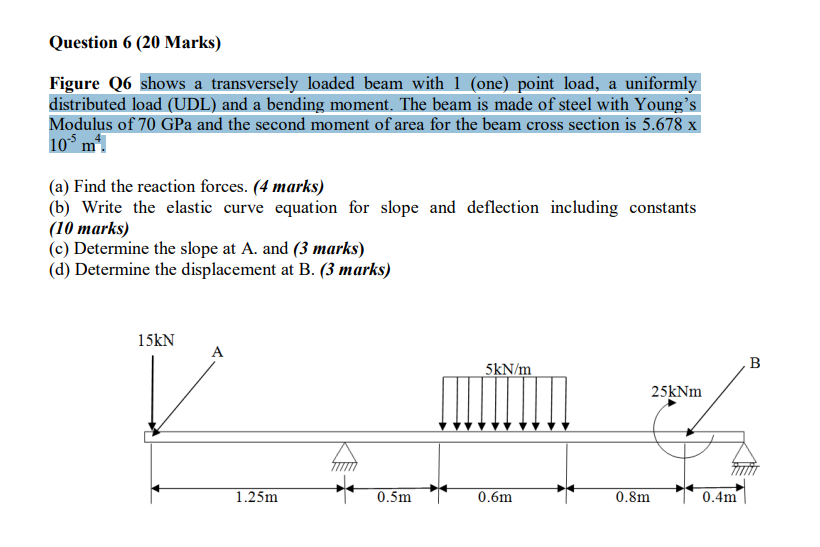

Question 6 20 Marks Figure Q6 Shows A Transversely Loaded Beam With 1 One Point Load A Uniformly Distributed Load 1
Question 6 20 Marks Figure Q6 Shows A Transversely Loaded Beam With 1 One Point Load A Uniformly Distributed Load 1 (90.45 KiB) Viewed 36 times
Question 6 (20 Marks) Figure Q6 shows a transversely loaded beam with 1 (one) point load, a uniformly distributed load (UDL) and a bending moment. The beam is made of steel with Young's Modulus of 70 GPa and the second moment of area for the beam cross section is 5.678 x 10 mª (a) Find the reaction forces. (4 marks) (b) Write the elastic curve equation for slope and deflection including constants (10 marks) (c) Determine the slope at A. and (3 marks) (d) Determine the displacement at B. (3 marks) 15kN A 1.25m 0.5m 5kN/m 0.6m 0.8m 25kNm 0.4m B
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
