The notched test sample shown below is 0.65 in. thick. The dimensions are a = = 40.0 in., h = 2.50 in., and d = 1.50 in.

[answerhappygod]

The Notched Test Sample Shown Below Is 0 65 In Thick The Dimensions Are A 40 0 In H 2 50 In And D 1 50 In 1 (60.07 KiB) Viewed 22 times

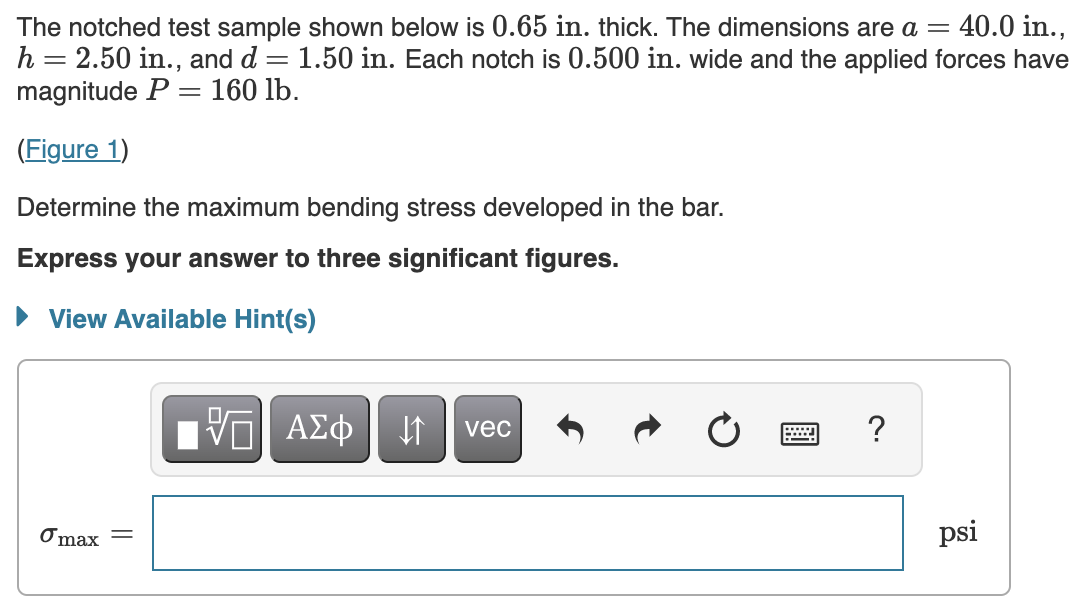

The notched test sample shown below is 0.65 in. thick. The dimensions are a = = 40.0 in., h = 2.50 in., and d = 1.50 in. Each notch is 0.500 in. wide and the applied forces have magnitude P = 160 lb. (Figure 1) Determine the maximum bending stress developed in the bar. Express your answer to three significant figures. ► View Available Hint(s) max || VE V—| ΑΣΦ | H vec ? psi
a P d a P a h
