QUESTION 18 The person standing on the diving board Wp has a mass of 52 kg. and the diving board Wp has a mass of 35 kg.

Post by answerhappygod »

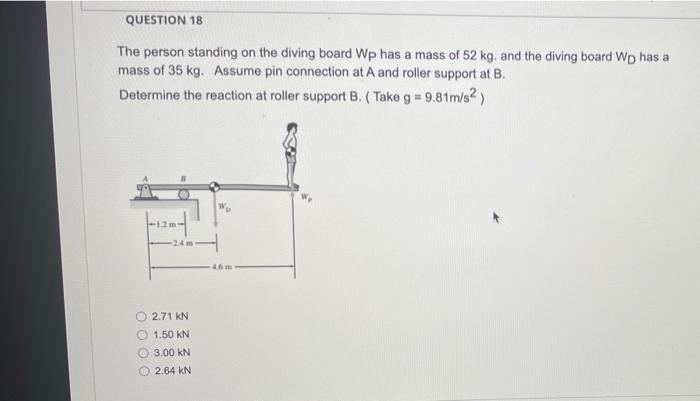

Question 18 The Person Standing On The Diving Board Wp Has A Mass Of 52 Kg And The Diving Board Wp Has A Mass Of 35 Kg 1
Question 18 The Person Standing On The Diving Board Wp Has A Mass Of 52 Kg And The Diving Board Wp Has A Mass Of 35 Kg 1 (22.17 KiB) Viewed 14 times
QUESTION 18 The person standing on the diving board Wp has a mass of 52 kg. and the diving board Wp has a mass of 35 kg. Assume pin connection at A and roller support at B. Determine the reaction at roller support B. (Take g = 9.81m/s²) -24 m 2.71 KN 1.50 KN 3.00 KN 2.64 KN 4.6 m
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
