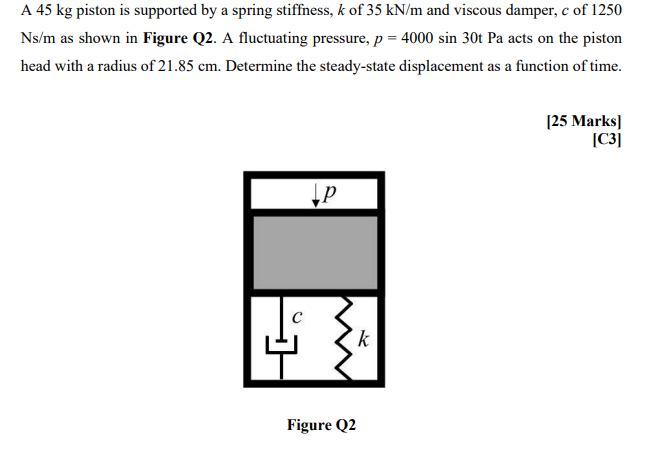

A 45 kg piston is supported by a spring stiffness, k of 35 kN/m and viscous damper, c of 1250 Ns/m as shown in Figure Q2. A fluctuating pressure, p = 4000 sin 30t Pa acts on the piston head with a radius of 21.85 cm. Determine the steady-state displacement as a function of time. C P k Figure Q2 [25 Marks] [C3]
