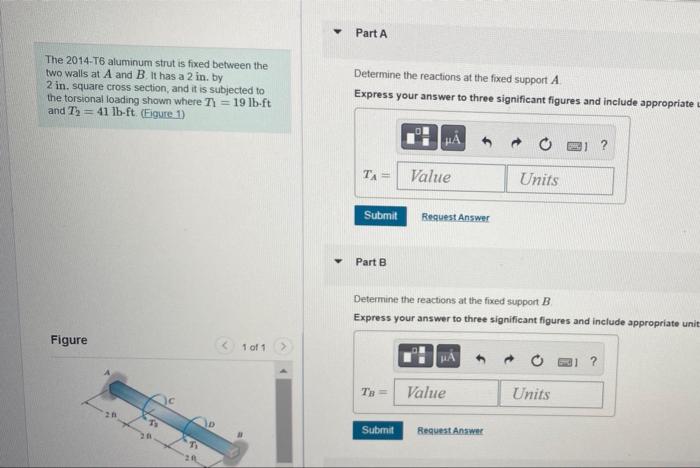

The 2014-T6 aluminum strut is fixed between the two walls at A and B. It has a 2 in. by 2 in. square cross section, and it is subjected to the torsional loading shown where I = 19 lb-ft and T₂ = 41 lb-ft (Figure 1) Figure 1 of 1 Part A Determine the reactions at the fixed support A Express your answer to three significant figures and include appropriate TA= Submit Part B Value TB Request Answer Determine the reactions at the fixed support B Express your answer to three significant figures and include appropriate unit μÁ Value Units Submit Request Answer Units ?

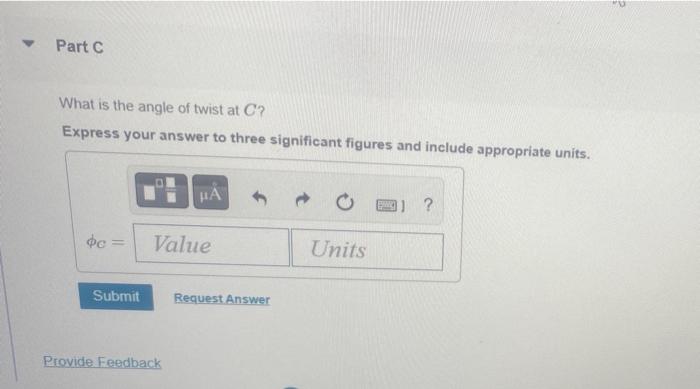

▾ Part C What is the angle of twist at C? Express your answer to three significant figures and include appropriate units. pc = Value Submit μA Provide Feedback Request Answer Units 1?
