Required information Problem 04.148 - Eccentric axial loads on a rectangular section - DEPENDENT MULTI-PART PROBLEM - AS

[answerhappygod]

Required Information Problem 04 148 Eccentric Axial Loads On A Rectangular Section Dependent Multi Part Problem As 1 (176.26 KiB) Viewed 26 times

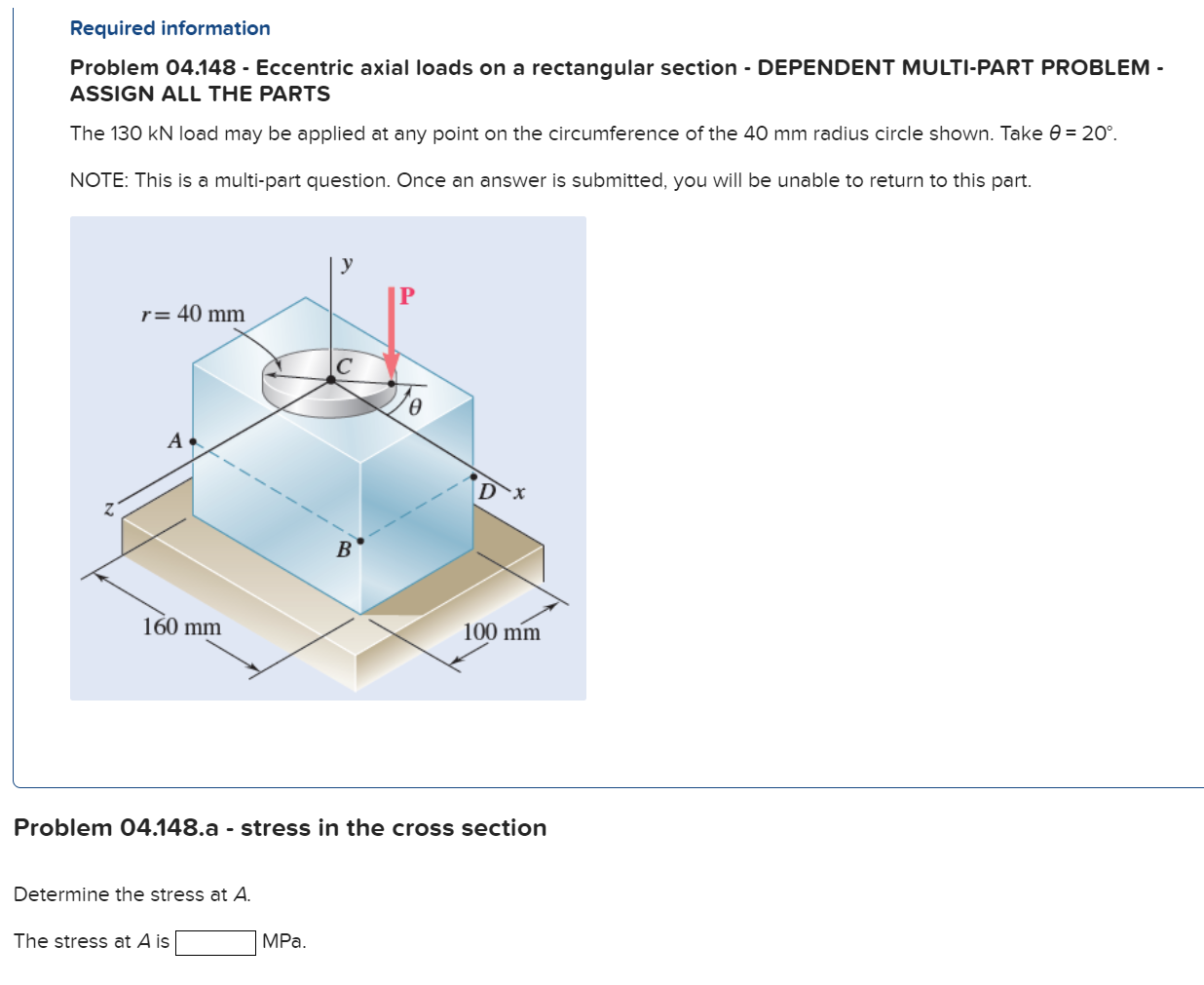

Required information Problem 04.148 - Eccentric axial loads on a rectangular section - DEPENDENT MULTI-PART PROBLEM - ASSIGN ALL THE PARTS The 130 kN load may be applied at any point on the circumference of the 40 mm radius circle shown. Take 0 = 20°. NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. r = 40 mm A. 160 mm ----- Determine the stress at A. The stress at A is B Problem 04.148.a - stress in the cross section MPa. P 100 mm
