The two shafts are made of A-36 steel. Each has a diameter of 25 mm and they are connected using the gears fixed to thei

[answerhappygod]

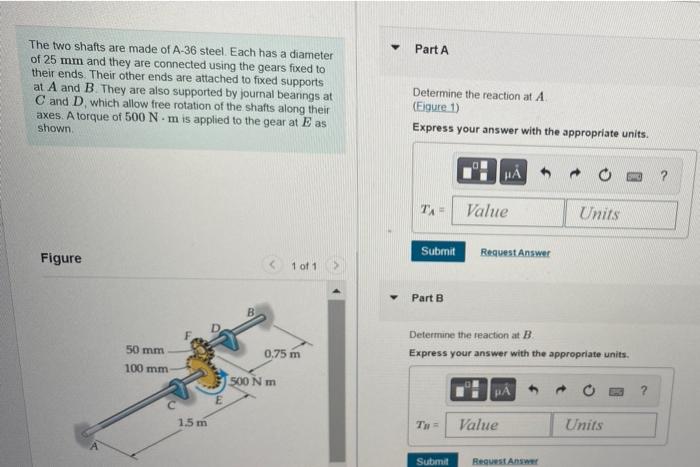

The Two Shafts Are Made Of A 36 Steel Each Has A Diameter Of 25 Mm And They Are Connected Using The Gears Fixed To Thei 1 (43.35 KiB) Viewed 25 times

The two shafts are made of A-36 steel. Each has a diameter of 25 mm and they are connected using the gears fixed to their ends. Their other ends are attached to fixed supports at A and B. They are also supported by journal bearings at C and D, which allow free rotation of the shafts along their axes. A torque of 500 N-m is applied to the gear at E as shown. Figure A 50 mm 100 mm- 1.5m E B 1 of 1 0,75 m 500 Nm Y Part A Determine the reaction at A. (Eigure 1) Express your answer with the appropriate units. TA= Part B Submit Request Answer TH= HA Value Submit Determine the reaction at B. Express your answer with the appropriate units. PA Value Units Request Answer Units
