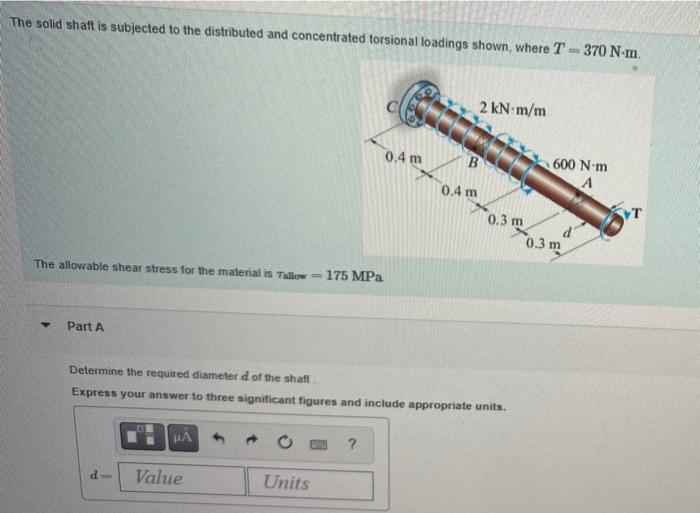

The solid shaft is subjected to the distributed and concentrated torsional loadings shown, where T 370 N-m. The allowabl

[answerhappygod]

The Solid Shaft Is Subjected To The Distributed And Concentrated Torsional Loadings Shown Where T 370 N M The Allowabl 1 (41.75 KiB) Viewed 27 times

The solid shaft is subjected to the distributed and concentrated torsional loadings shown, where T 370 N-m. The allowable shear stress for the material is Tallow- Y Part A HA do Value 175 MPa Units 0.4 m 2 kN m/m Determine the required diameter d of the shaft. Express your answer to three significant figures and include appropriate units. B 0.4 m 0.3 m 600 N-m A 0.3 m
