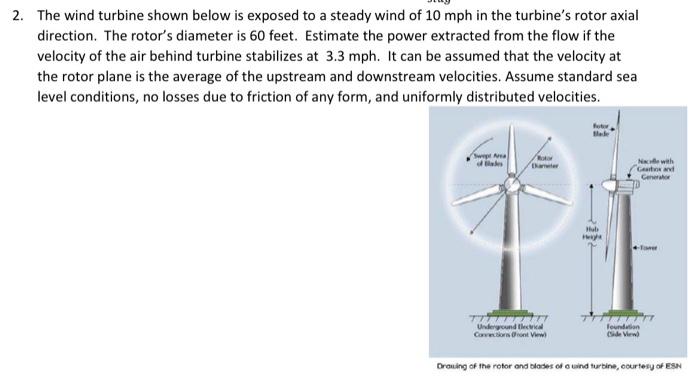

2. The wind turbine shown below is exposed to a steady wind of 10 mph in the turbine's rotor axial direction. The rotor's diameter is 60 feet. Estimate the power extracted from the flow if the velocity of the air behind turbine stabilizes at 3.3 mph. It can be assumed that the velocity at the rotor plane is the average of the upstream and downstream velocities. Assume standard sea level conditions, no losses due to friction of any form, and uniformly distributed velocities. Swept Area Motor 77777 Underground Electrical Connections ont View) fotor Hub Height Nace with Gearbox and Generator -Tower Foundation Cide View) Drawing of the rotor and blades of a wind turbine, courtesy of ESN
